Edge Trim-ES28-403-P60
ES28-403-P60
Request for a Quote & Information
Product Overview & Description

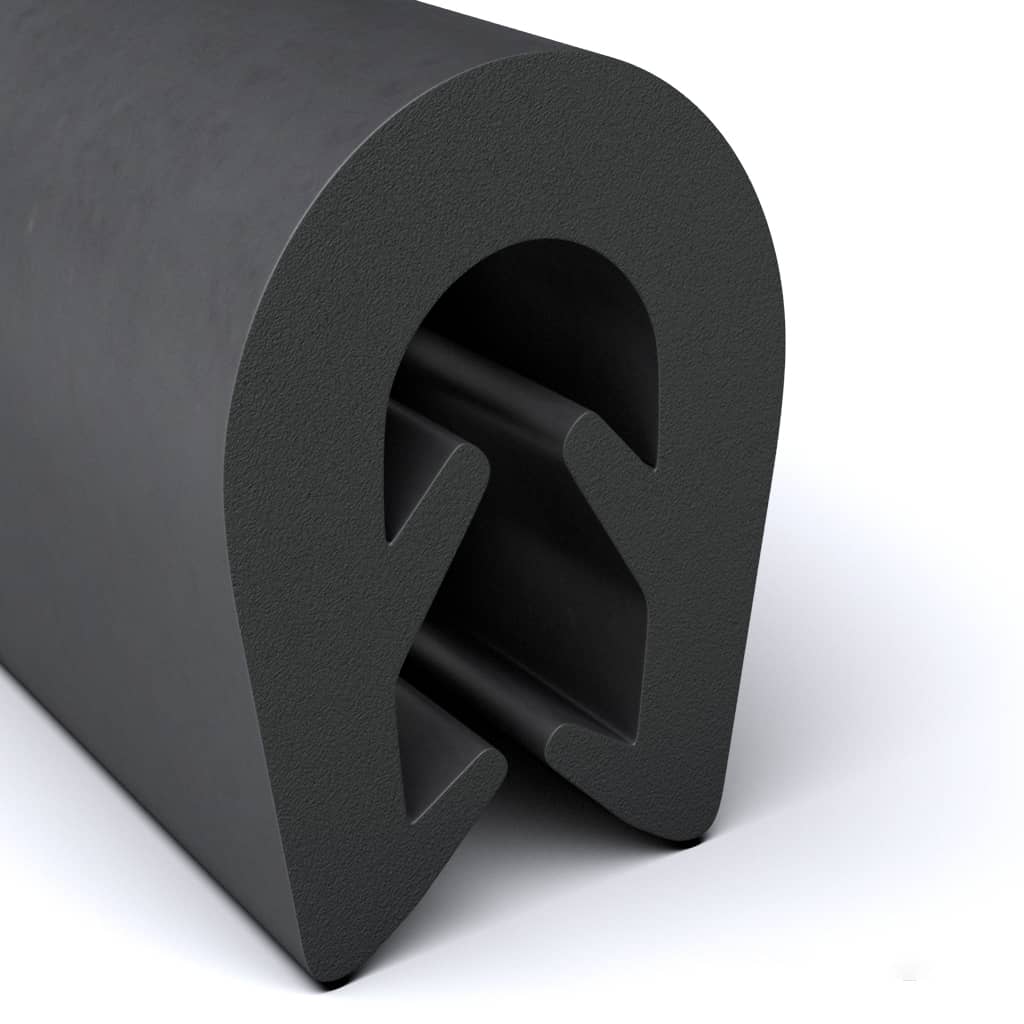

ES28-403-P60 is a 70-durometer (Shore A) edge trim that is black in color and made of an FDA-approved thermoplastic elastomer (TPE). TPEs have both thermoplastic and elastomeric properties and are black in color. ES28-403-P60 is 17 mm tall and 12 mm at its widest point. It has a slight taper and is designed to press onto a flange. Internal tongues support attachment.
Technical Drawing & Specification
MATERIAL: TPE FDA
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: RMA-E2
SCALE: Not to scale
COLOR: Black
DURO: 70 ±5
Bending Radius & Additional Information
ES28-403-P60 is a medium-durometer edge trim made of a thermoplastic elastomer (TPE) that is FDA-approved. This 70-durometer (Shore A) trim seal is 17 mm tall and is designed to press into place over a metal flange. ES28-403-P60 has integral tongues for added gripping and is a good choice for protecting the edges of metal tables in the food industry.
