Edge Trim-ES28-132-P60 - Elasto Proxy

ES28-132-P60

Request for a Quote & Information

Product Overview & Description

ES28-132-P60 by Elasto Proxy on Sketchfab

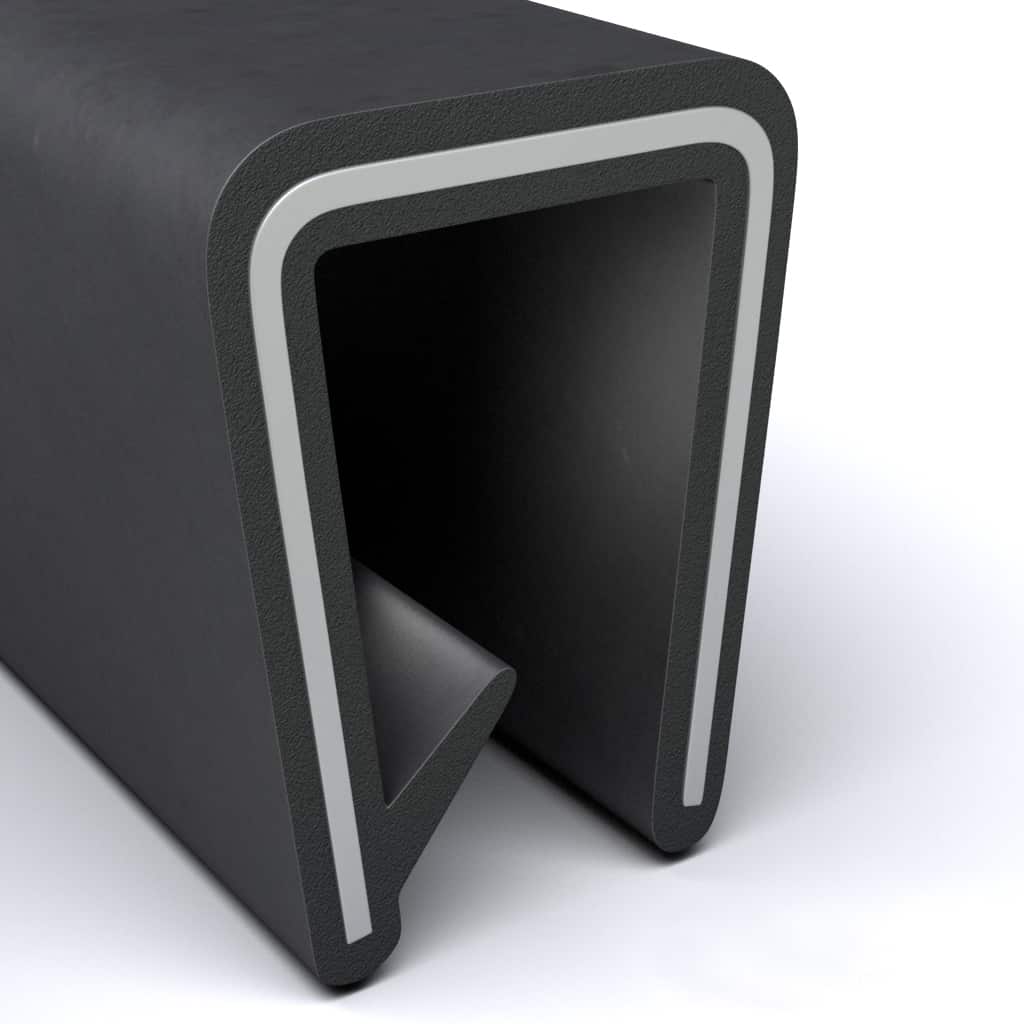

ES28-132-P60 is an 80-durometer vinyl edge trim that is black in color. It is shaped like an inverted U but has a flat top that measures 12.9 mm across. ES28-132-P60 is metal-reinforced for impact resistance and has an integral tongue for added gripping. This industrial rubber product presses onto the flange and is designed to protect metal edges.

Technical Drawing & Specification

MATERIAL: Vinyl
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: RMA-E2
SCALE: Not to scale
COLOR: Black
DURO: 80 ±5

Bending Radius & Additional Information

ES28-132-P60 is an edge trim made of 80-durometer rubber and reinforced with metal for added impact resistance. The height of this industrial rubber product is 17.4 mm and the distance between its two legs is 6.4 mm. ES28-132-P60 has a flat top that measures 12.9 mm. The material of construction, black vinyl, is durable and resists both moisture and abrasion.
