Dual Durometer-EC04-105-EM

EC04-105-EM

Request for a Quote & Information

Product Overview & Description

EC04-105-EM REV0 by Elasto Proxy on Sketchfab

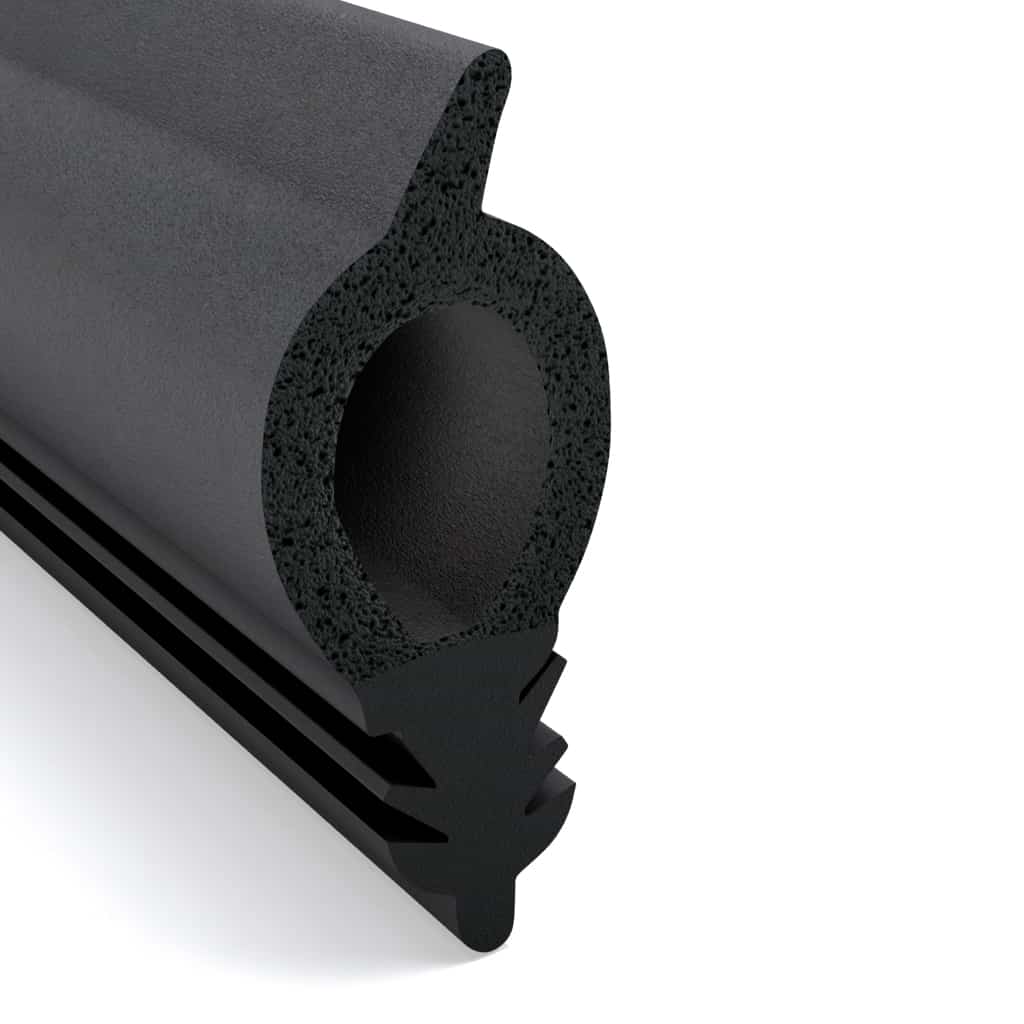

EC04-100-EM is a dual durometer EPDM profile that is co-extruded so that it has two sections of different hardness. The top section is a teardrop-shaped bulb made of EPDM sponge rubber. An extended lip increases the total height of EC04-100-EM to 27 mm. The bottom section is made of solid EPDM rubber and can be inserted into the substrate.

Technical Drawing & Specification

MATERIAL: EPDM Rubber
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: RMA-BEC2
SCALE: Not to scale
COLOR: Black
DURO: Dual

Bending Radius & Additional Information

EC04-100-EM is a dual durometer EPDM profile that is co-extruded so that it has sections of different hardness. The top section is a teardrop-shaped bulb made of EPDM sponge rubber. An extended lip increases the total height of EC04-100-EM to 27 mm. The bottom section is made of solid EPDM rubber and is designed for insertion into the substrate.
