EC28-271-EM

Request for a Quote & Information

Product Overview & Description

EC28-271-EM by Elasto Proxy on Sketchfab

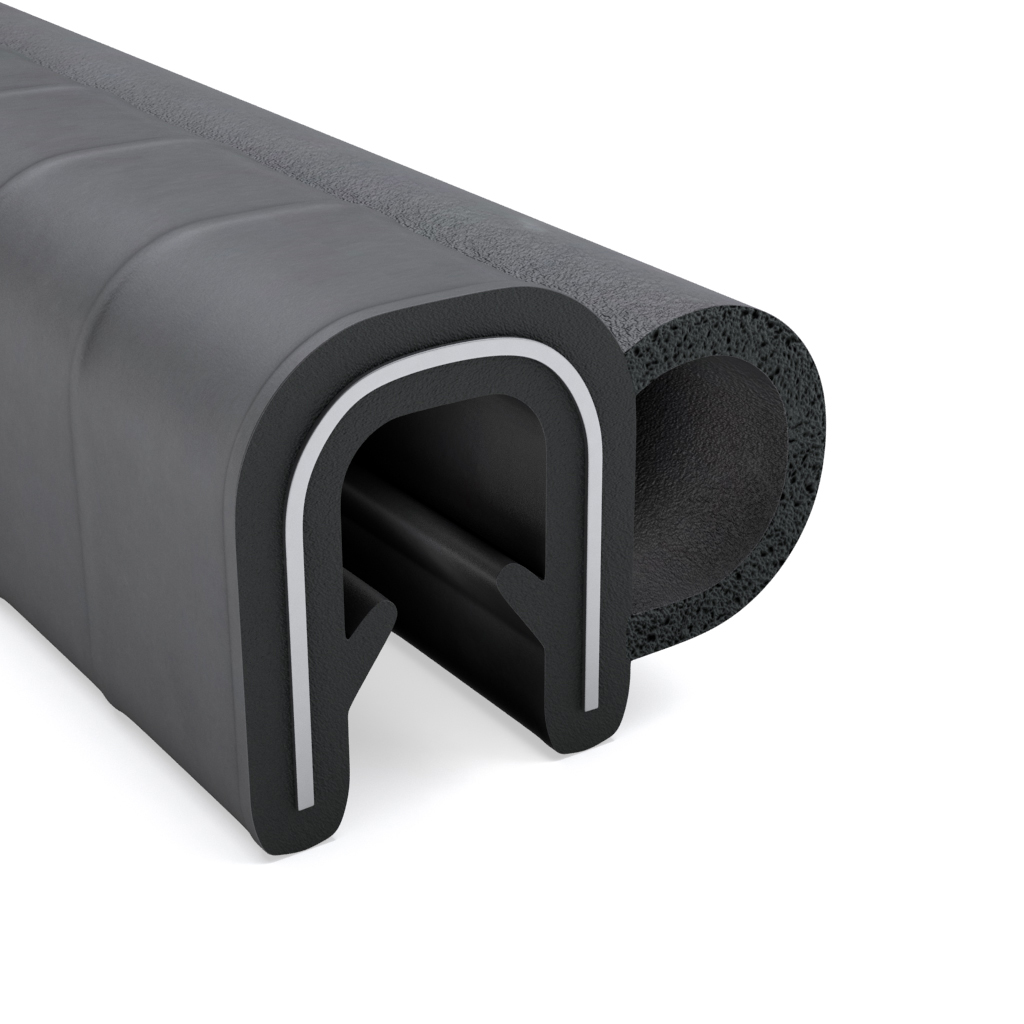

EC28-271-EM is a dual durometer bulb trim with a solid rubber retainer section on the left and a sponge rubber bulb on the right. The trim is 11.5 mm tall and the distance between the two legs is 5.0 mm. The retainer has two integral tongues for additional gripping and a contains a metal clip for added impact resistance. This industrial rubber products is sold in coils.

Technical Drawing & Specification

MATERIAL: EPDM
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: As shown
SCALE: Not to scale
COLOR: Black
DURO: Dual

Bending Radius & Additional Information

EC28-271-EM is an EPDM rubber co-extrusion with two different durometers, or hardness, on the Shore A scale. The trim is made of solid rubber and located to the left of the sponge, which is on the right side of this Elasto Proxy bulb trim. The distance between the mid-point of trim and edge of the bulb is 10.5 mm. This industrial rubber product can be fabricated into finished gaskets.
