Solid Profile-ES32-185-E60
ES32-185-E60
Request for a Quote & Information
Product Overview & Description

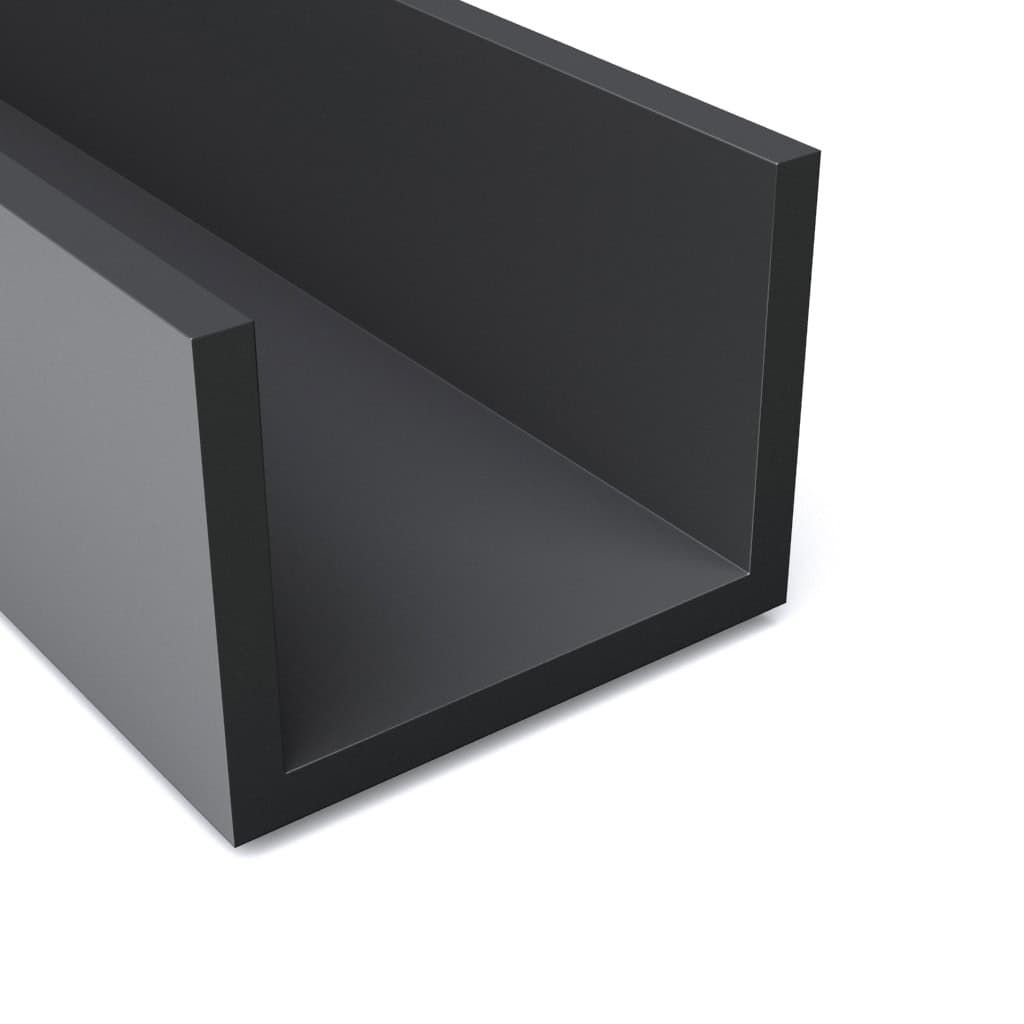

ES32-185-E60 is a 60-durometer sponge rubber profile that is made of EPDM rubber. It is black in color, extruded to RMA-E2 tolerances, and has a U-shape but with a squared bottom. The base of this sponge profile is 38.1 mm wide. The height is 28.6 mm. The thickness of each leg is 3.2 mm and the gap between the two legs is 31.8 mm.
Technical Drawing & Specification
MATERIAL: EPDM Rubber
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: RMA-E2
SCALE: Not to scale
COLOR: Black
DURO: 60 ±5
Bending Radius & Additional Information
ES32-185-E60 is an EPDM sponge rubber profile with a durometer, or hardness, of 60 Shore A. It is U-shaped but the bottom has squared rather than rounded edges. ES32-185-E60 is 38.1 mm wide at the base and has a height of 28.6 mm. The distance between the two legs is 31.8 mm, and this profile preses into place.
