Solid Profile-ES32-007-E70
ES32-007-E70
Request for a Quote & Information
Product Overview & Description

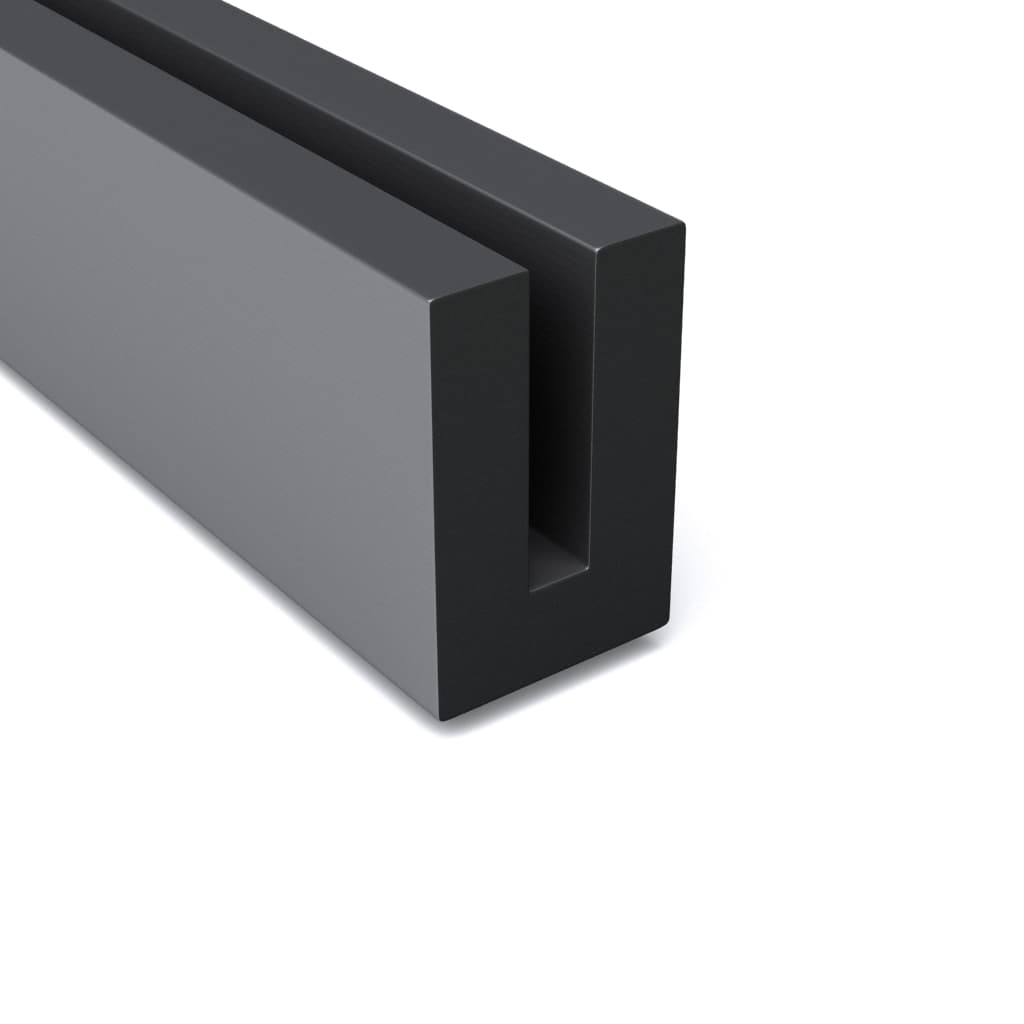

ES32-007-E70 is a 70-durometer, U-shaped, solid rubber profile that is made of weather-resistant EPDM. This solid profile has a squared base that is 6.4 mm wide. The distance, or gap, between the legs is 1.6 mm. Each leg is 2.5 mm wide. ES32-007-E70 is black in color, has an RMA-E2 tolerance, and installs over a flange or edge.
Technical Drawing & Specification
MATERIAL: EPDM Rubber
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: RMA-E2
SCALE: Not to scale
COLOR: Black
DURO: 70 ±5
Bending Radius & Additional Information
ES32-007-E70 is a solid rubber EPDM profile with a hardness, or durometer, of 70 (Shore A). This U-shaped rubber profile is 9.8 mm tall and 6.4 mm wide. Each of the profile’s legs is 2.5 mm wide and the distance, or gap, between the legs is 1.6 mm. ES32-007-E70 installs over a flange or edge and is black in color.
