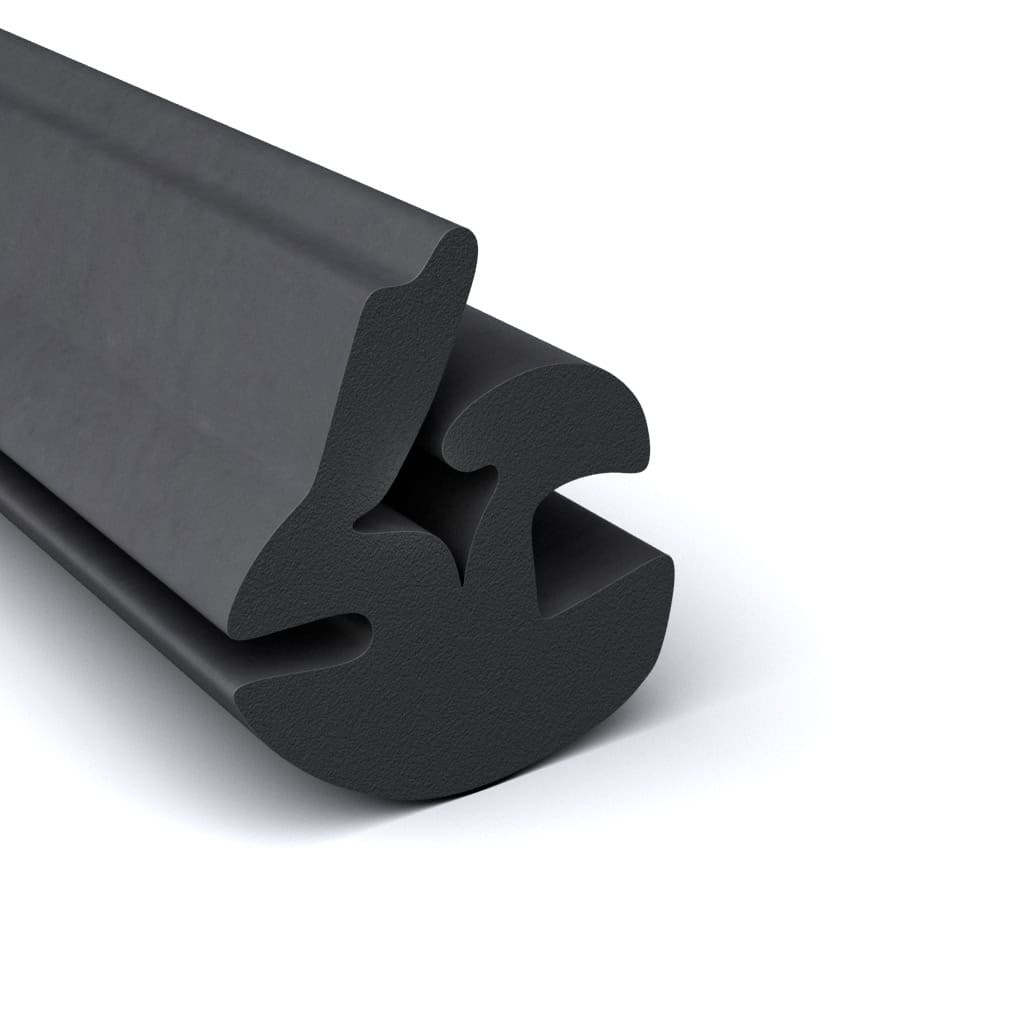

ES35-022-E65 is a 65-durometer EPDM window channel that is black in color. This window seal is extruded to RMA tolerance class E3 and has openings on its left and right sides for glass and metal substrates. Both of these openings are narrower at their mouth than at their base. The left opening is 3 mm deep and the right is 6 mm deep.
MATERIAL: EPDM
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: RMA-E3
SCALE: Not to scale
COLOR: Black
DURO: 65 ±5
ES35-022-E65 is a window channel that is made of 65-durometer EPDM rubber. It is designed to hold window glass in place and to help secure a window frame. The left side of this window seal has an opening that is 3 mm deep. The right side has an opening that is 6 mm deep. Both of these openings are wider at their bottom.
