Window Channel-ES35-020-E70
ES35-020-E70
Request for a Quote & Information
Product Overview & Description

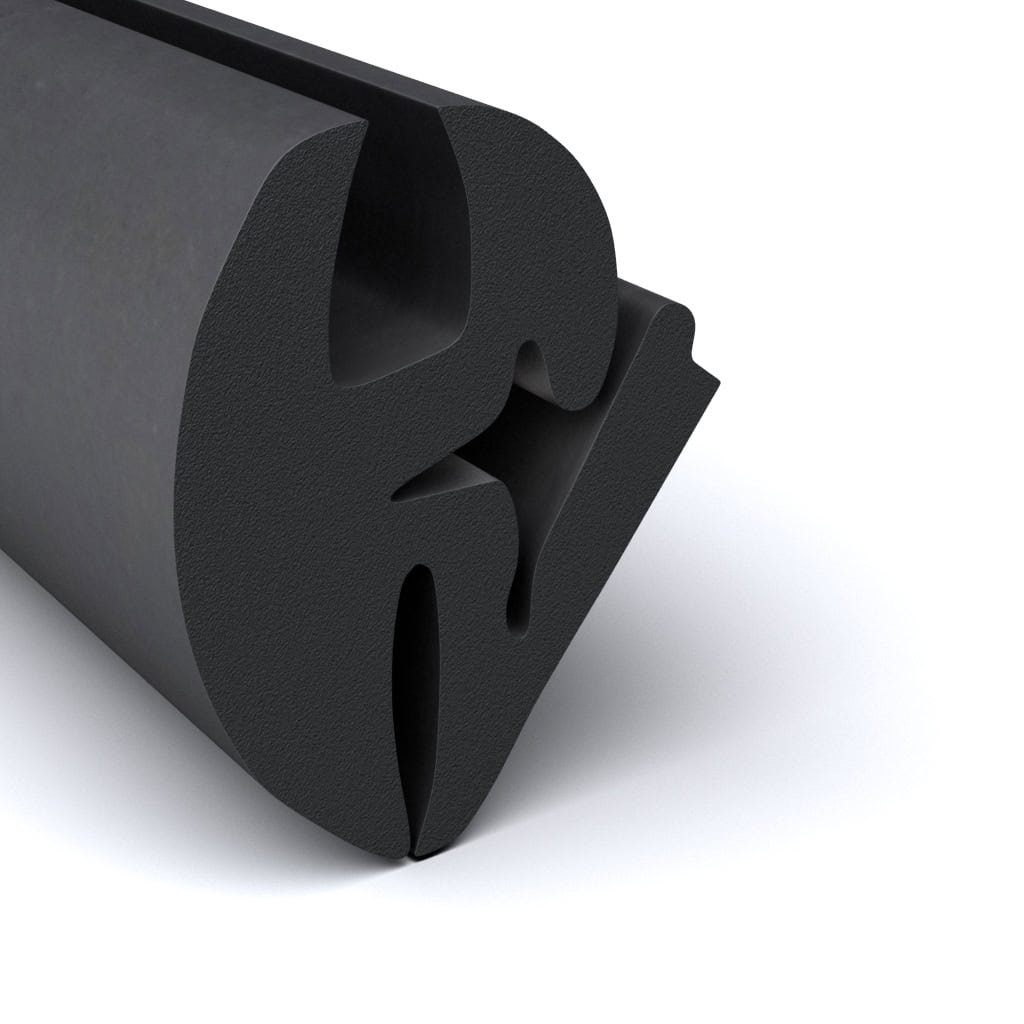

ES35-020-E70 is a 70-durometer rubber window channel made of EPDM. It is 27.0 mm tall and has openings for substrates at top and bottom. The top opening is 8.6 mm deep and 6.4 mm wide at its base, which is slightly angled. The bottom opening is 19.1 mm deep. Both the top and bottom openings are narrower at the mouth.
Technical Drawing & Specification
MATERIAL: EPDM
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: RMA-A2
SCALE: Not to scale
COLOR: Black
DURO: 70 ±5
Bending Radius & Additional Information
ES35-020-E70 is a 70-durometer window channel made of EPDM, a weather-resistant elastomer. This window seal is 27.0 mm tall and has two openings, top and bottom, for substrates. The top opening is 8.6 mm deep and 6.4 mm wide, but with a narrower mouth. The bottom opening is 11.4 mm deep with a narrower mouth.
Related Articles & Blogs
Bulb Trim Guide
This bulb trim guide from Elasto Proxy explains how to select, use, and install rubber products that are sometimes known as trim seals.

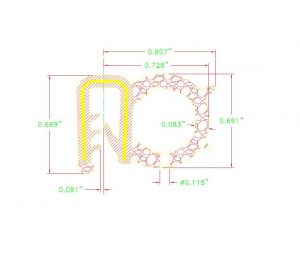

Bulb Trim Sizing
Can you use a different bulb trim size than what’s listed on your part drawing? This article explains what you’ll need to consider and why it matters.

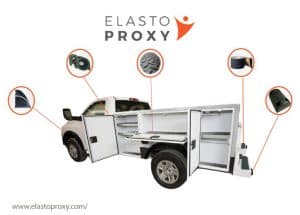

Service Truck Body Solutions
