Window Channel-ES35-019-E60
ES35-019-E60
Request for a Quote & Information
Product Overview & Description

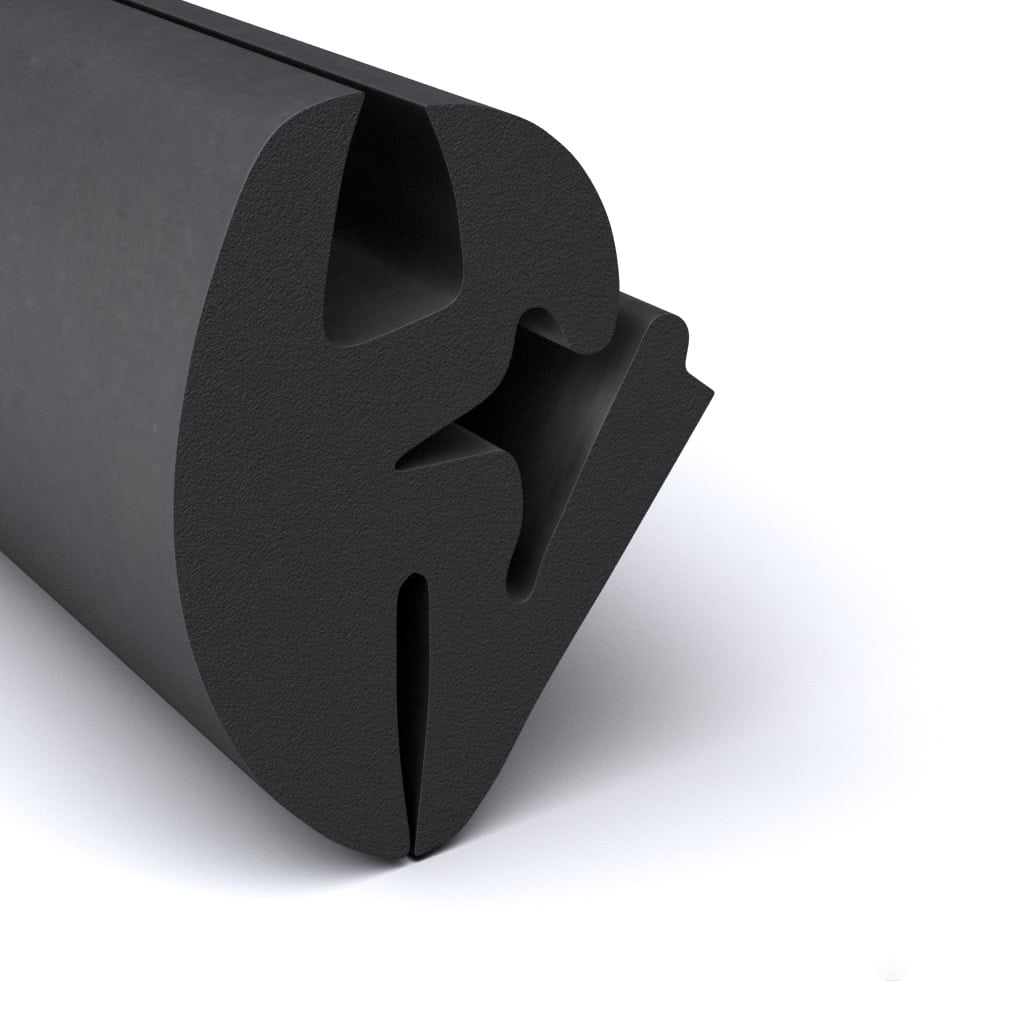

ES35-019-E60 is a 60-durometer window channel made of black EPDM, a weather-resistant material. This industrial rubber product is 29 mm tall and has a bottom opening that is 12 mm deep and a top opening that is less than 5 mm wide. The height of this top opening is 8 mm. All dimensions listed are in the closed position.
Technical Drawing & Specification
MATERIAL: EPDM
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: RMA-E2
SCALE: Not to scale
COLOR: Black
DURO: 60 ±5
Bending Radius & Additional Information
ES35-019-E60 is a window channel that is made of 60-durometer EPDM rubber. This extrusion is black in color and has two openings to accommodate glass and metal substrates. The top opening is 8 mm deep and is smaller at the mouth. The bottom opening is 12 mm deep and is also narrower at the mouth. The tolerance is E2.
