Sponge Profile-EC12-506-EMT1

EC12-506-EMT1

Request for a Quote & Information

Product Overview & Description

EC12-506-EMT1 REV1 by Elasto Proxy on Sketchfab

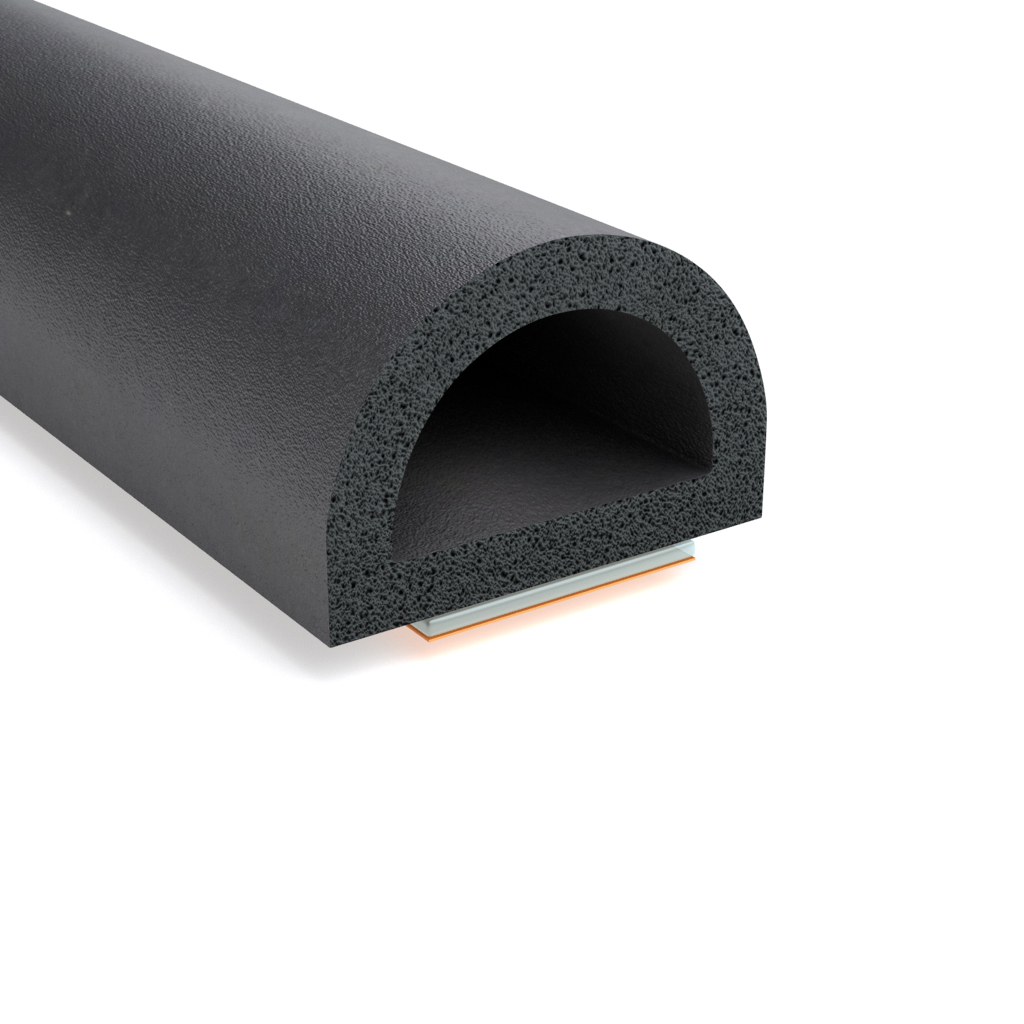

EC12-506-EMT1 is a D-shaped sponge profile that is made of medium-durometer black EPDM rubber. The base of this profile is flat and 9.5 mm long. It is designed to support adhesive taping for gasket installation. The distance from the base of EC12-506-EMT1 to its highest point is 6.4 mm. At the D-shape’s highest point, the rubber’s width is 1.3 mm.

Technical Drawing & Specification

MATERIAL: EPDM Sponge
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: RMA-BEC2
SCALE: Not to scale
COLOR: Black
DURO: Medium

Bending Radius & Additional Information

EC12-506-EMT1 is a sponge profile with a D-shape. This EPDM rubber profile is black in color and has a medium durometer that supports gasket compression. EC12-506-EMT1 installs with adhesive tape that can be attached to the base of the profile, which is 9.5 mm long. From the base of the profile to it’s highest point measures 6.4 mm.
