Sponge Profile-EC12-055-EMT1

EC12-055-EMT1

Request for a Quote & Information

Product Overview & Description

EC12-055-EMT1 REV2 by Elasto Proxy on Sketchfab

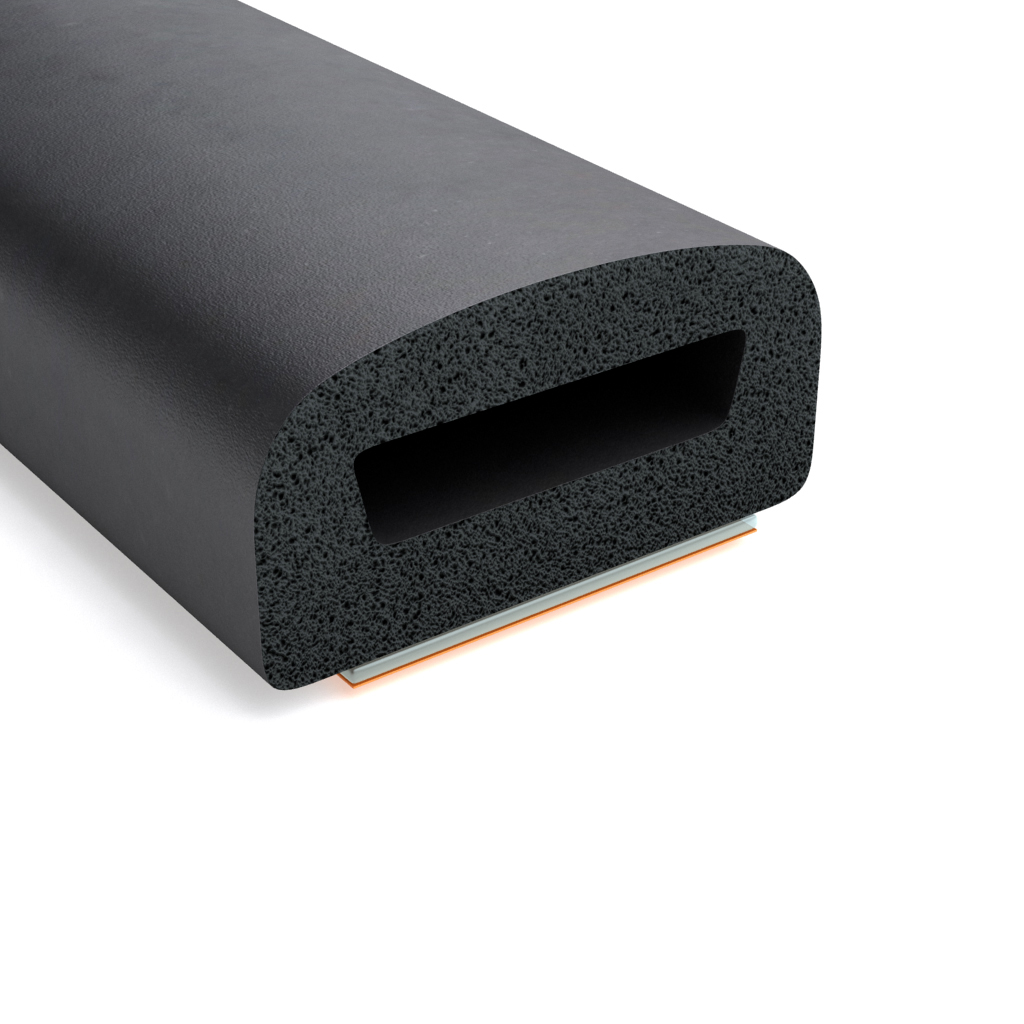

EC12-055-EMT1 is medium-durometer EPDM sponge rubber profile with a flat base, two straight-edged sides, and a rounded top. The base is 18.7 mm wide and the sides are 9.5 mm tall. The rounded top spans 19.1 mm. The interior is irregularly-shaped and 13.3 at its widest point. This profile supports taping.

Technical Drawing & Specification

MATERIAL: EPDM Sponge
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: RMA-BEC2
SCALE: Not to scale
COLOR: Black
DURO: Medium

Bending Radius & Additional Information

EC12-055-EMT1 is a sponge profile with a flat base, rounded top, and two straight sides. This medium-durometer EPDM rubber product attaches to a substrate with gasket tape. The base is 18.7 mm, the sides are 9.5 mm, and the rounded top is 19.1 mm. Choose coils, cut lengths, or finished gaskets.
