Sponge Profile-EC12-050-EMT1

EC12-050-EMT1

Request for a Quote & Information

Product Overview & Description

EC12-050-EMT1_REV2 by Elasto Proxy on Sketchfab

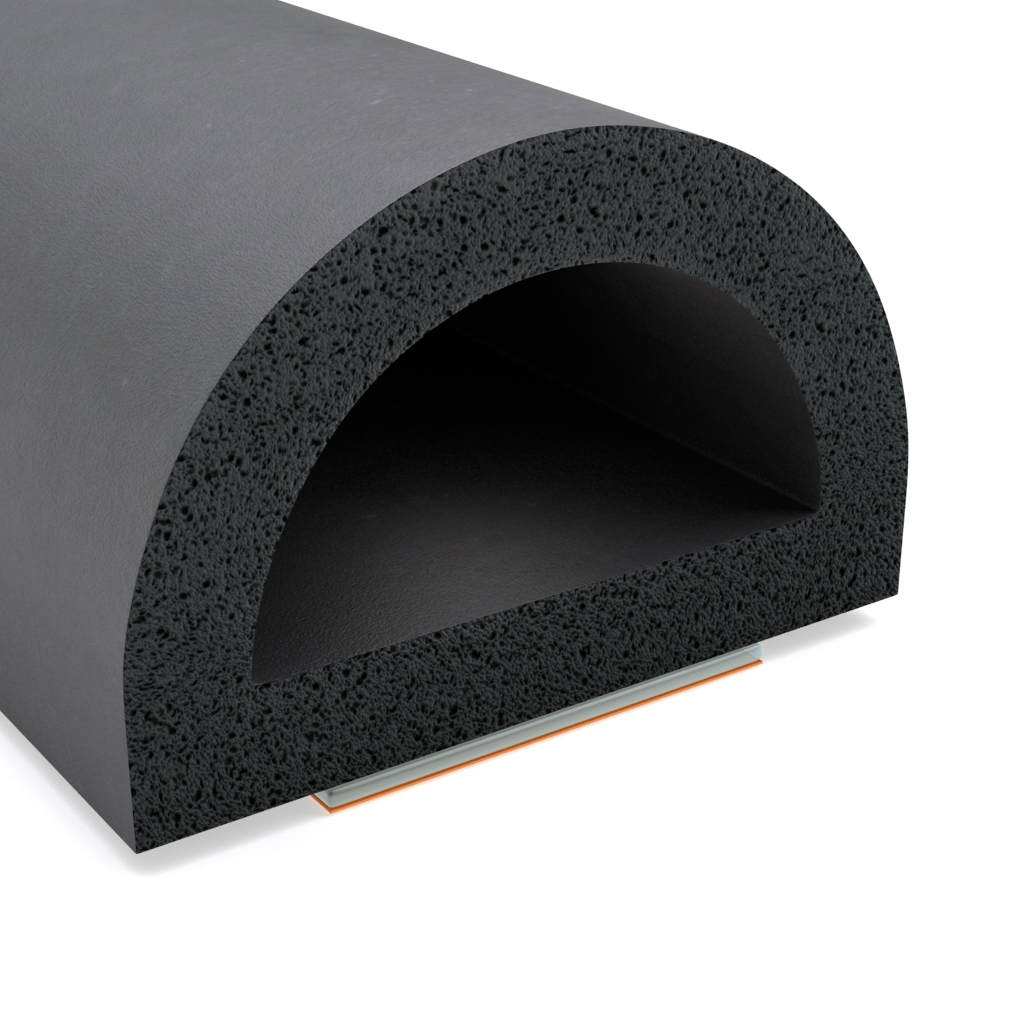

EC12-050-EMT1 is a D-shaped sponge profile made of medium-durometer EPDM rubber. It is black in color and 10 mm tall. This sponge rubber profile attaches to a substrate with adhesive tape and is 16 mm at the base, which intersects with the rest of the D-shape at right angles. The sponge is 2 mm thick.

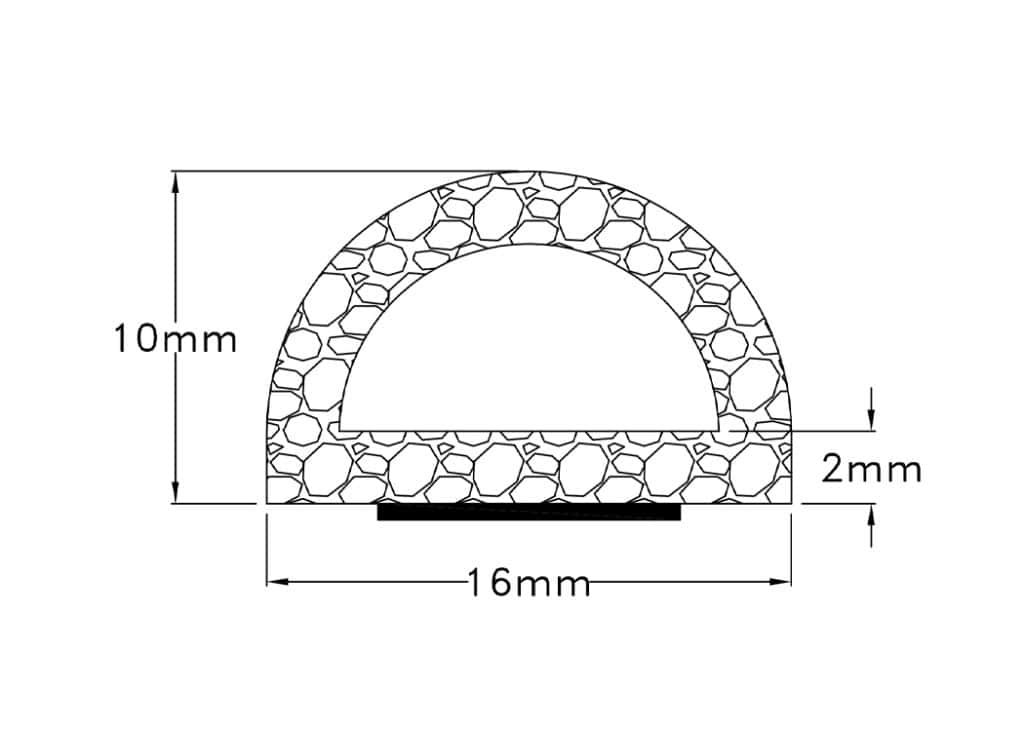

Technical Drawing & Specification

MATERIAL: EPDM Sponge
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: As shown
SCALE: Not to scale
COLOR: Black
DURO: Medium

Bending Radius & Additional Information

EC12-050-EMT1 is a medium-durometer EPDM sponge rubber profile that is shaped like a halfmoon. This D-shaped rubber product uses adhesive taping for substrate attachment and is available in coils, cut lengths, and finished gaskets. EC12-050-EMT1 is 10 mm tall and measures 16 mm at the base.
