Sponge Profile-EC12-017-EMT1
EC12-017-EMT1
Request for a Quote & Information
Product Overview & Description

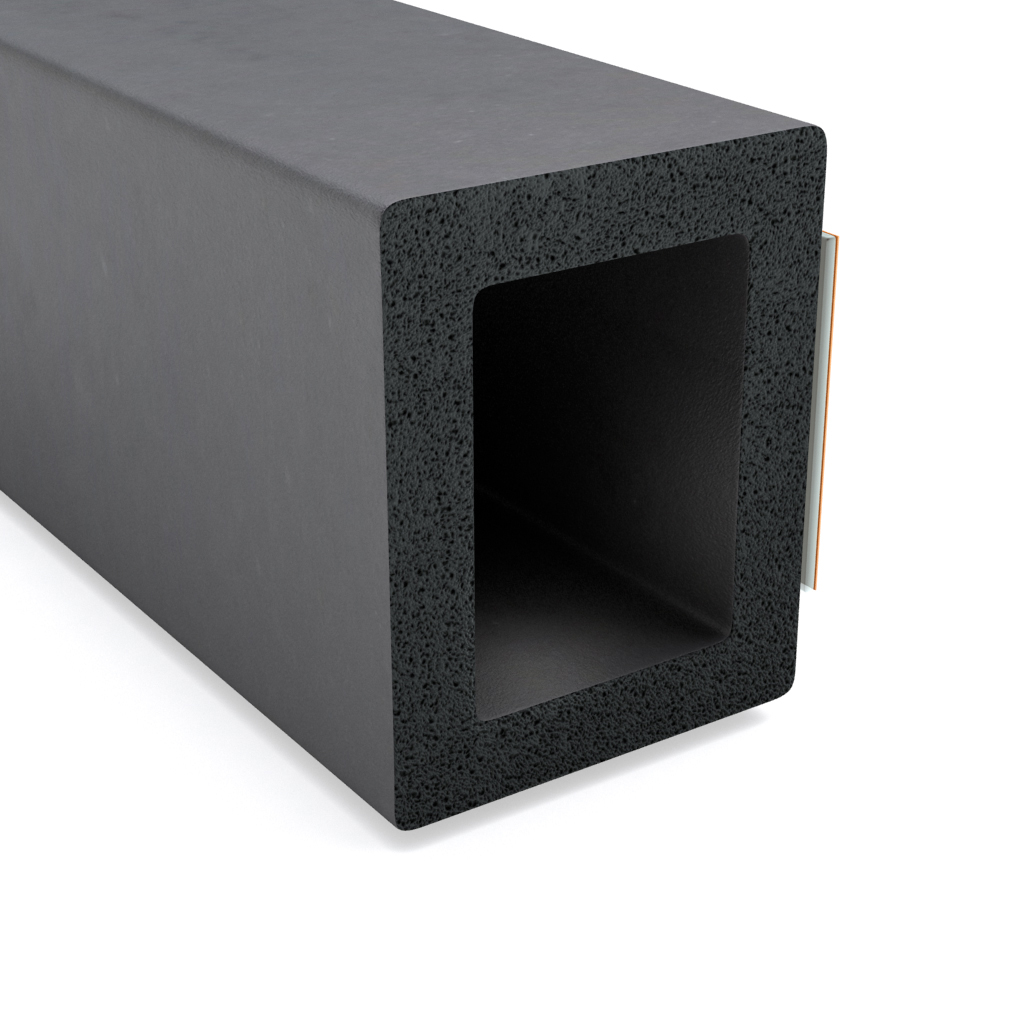

EC12-017-EMT1 is a rectangular profile made of medium-durometer EPDM sponge. The two taller sides are 15.9 mm. The two shorter sides are 12.7 mm. The width of each wall is 2.3 mm. The rectangular open middle is designed to support compression. EC-12-017-EMT1 attaches to a substrate with taping on its left side.
Technical Drawing & Specification
MATERIAL: EPDM Sponge
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: RMA-BER2
SCALE: Not to scale
COLOR: Black
DURO: Medium
Bending Radius & Additional Information
EC12-017-EMT1 is a sponge profile that is rectangular in shape and made of EPDM sponge rubber. This gasket is black in color and is designed to support adhesive tape on its left side. The width of each of the four walls is 2.3 mm. Two of this sponge rubber profile’s sides are 15.9 mm, and the other two are 12. 7mm.
