Sponge Profile-EC12-005-EMT1
EC12-005-EMT1
Request for a Quote & Information
Product Overview & Description

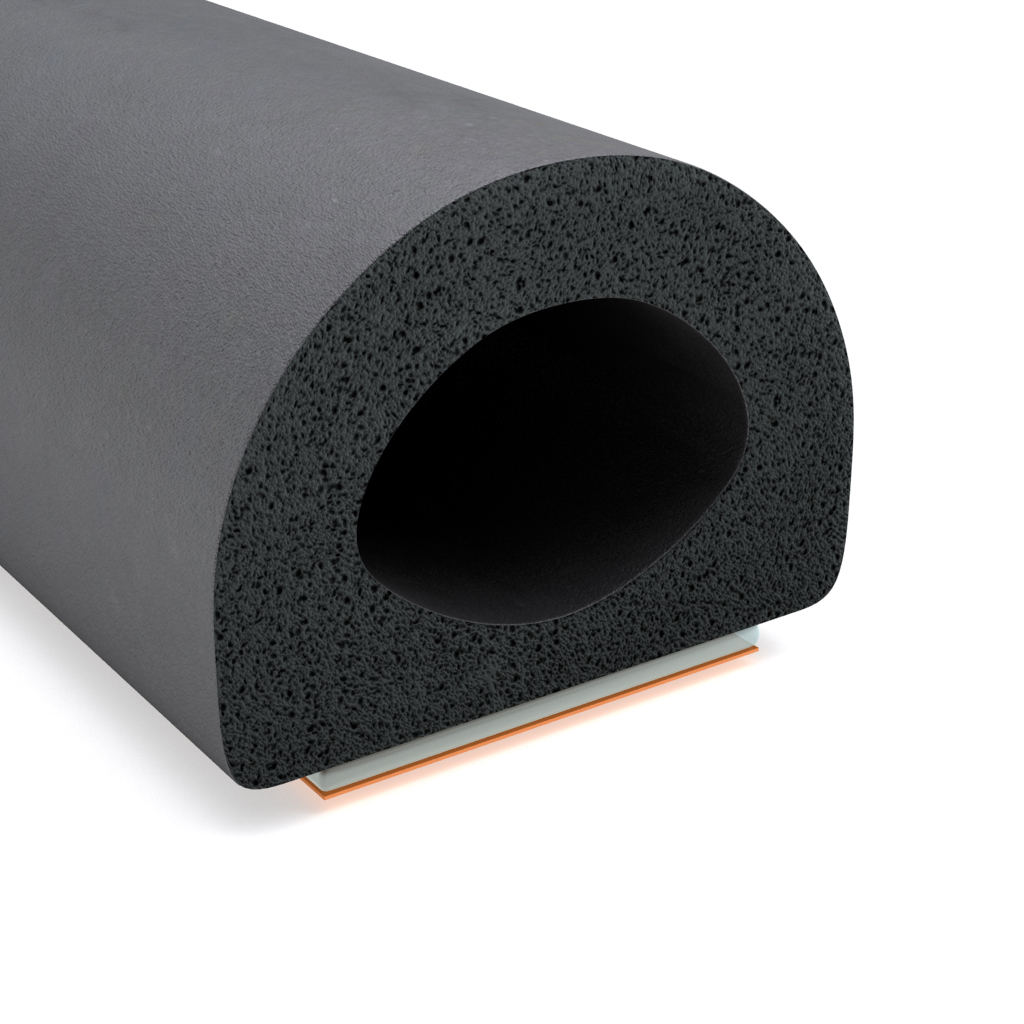

EC12-005-EMT is a sponge rubber profile that is black in color and made of EPDM, a weather-resistant elastomer. It is extruded to RMA class BEC2 and attaches to a substrate with adhesive tape. EC12-005-EMT has a rounded top section, two rounded corners, and a flat 12.7mm – wide base where the tape attaches.
Technical Drawing & Specification
MATERIAL: EPDM Sponge
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: RMA-BEC2
SCALE: Not to scale
COLOR: Black
DURO: Medium
Bending Radius & Additional Information
EC12-005-EMT is a medium-durometer sponge rubber profile with a flat bottom and a rounded top. The base, or bottom, of this sponge rubber profile is 12.7 mm across. The distance from the bottom of the gasket to its highest point is 9.1 mm. EC12-005-EMT is black in color, extruded to RMA class BEC2, and made of EPDM.
