Sponge Profile-EC04-130-EMT1

EC04-130-EMT1

Request for a Quote & Information

Product Overview & Description

EC04-130-EMT1 REV0 by Elasto Proxy on Sketchfab

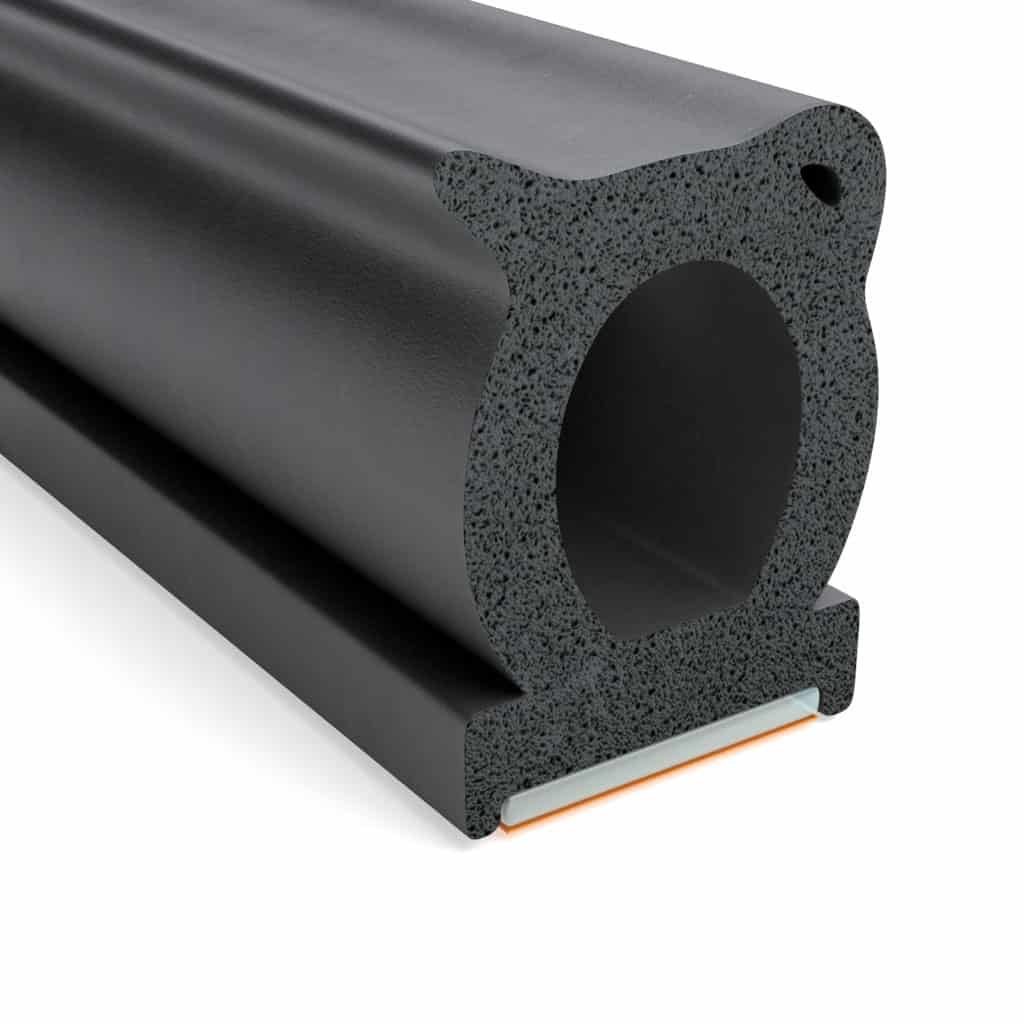

EC04-130-EMT1 is a medium-durometer EPDM sponge rubber profile that is designed to attach to a substrate with gasket tape. It has a single bulb atop a flat section with slight legs on either side. The bulb section is designed to support compression and the flat section, or base, supports taping and is 12.5 mm wide.

Technical Drawing & Specification

MATERIAL: EPDM Sponge
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: RMA-BEC2
SCALE: Not to scale
COLOR: Black
DURO: Medium

Bending Radius & Additional Information

EC04-130-EMT1 is a sponge rubber profile that is made of medium-durometer EPDM rubber. The base is 12.5 mm wide, the height is 18.0 mm, and the top section spans 13.0 mm between two protruding features. EC04-130-EMT1 attaches to a substrate with adhesive tape and has a single bulb that supports compression.
