Solid Profile-ES32-123-N70
ES32-123-N70
Request for a Quote & Information
Product Overview & Description

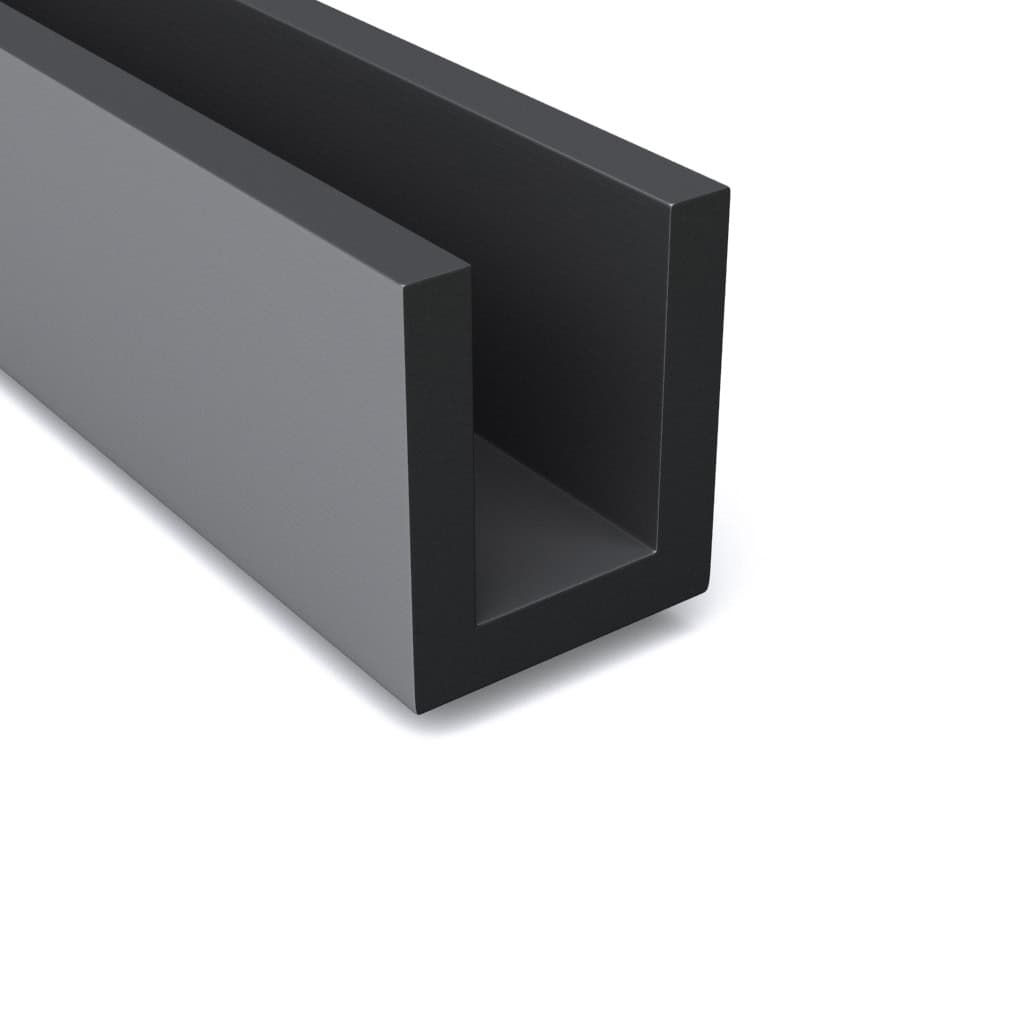

ES32-123-N70 is a 70-durometer, solid rubber neoprene profile. It is U-shaped but with squared bottom edges. ES32-123-N70 is 9.5 mm tall and 7.9 mm at the base. The legs are each 9.5 mm tall and 1.6 mm wide. The gap, or distance, between the legs is 4.7 mm. This industrial rubber product is designed to press in place.
Technical Drawing & Specification
MATERIAL: Neoprene
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: RMA-E3
SCALE: Not to scale
COLOR: Black
DURO: 70 ±5
Bending Radius & Additional Information
ES32-123-N70 is a solid profile made of neoprene, a rubber that resists hydrocarbons, heat, flexing, and vibration. This solid rubber profile has a U-shape but its edges are squared instead of rounded. The base is 7.9 mm across and the height is 9.5 mm. This product is designed to press into place and has a gap of 4.7 mm.
