Solid Profile-ES08-525-N70

ES08-525-N70

Request for a Quote & Information

Product Overview & Description

ES08 525 N70 REV2 by Elasto Proxy on Sketchfab

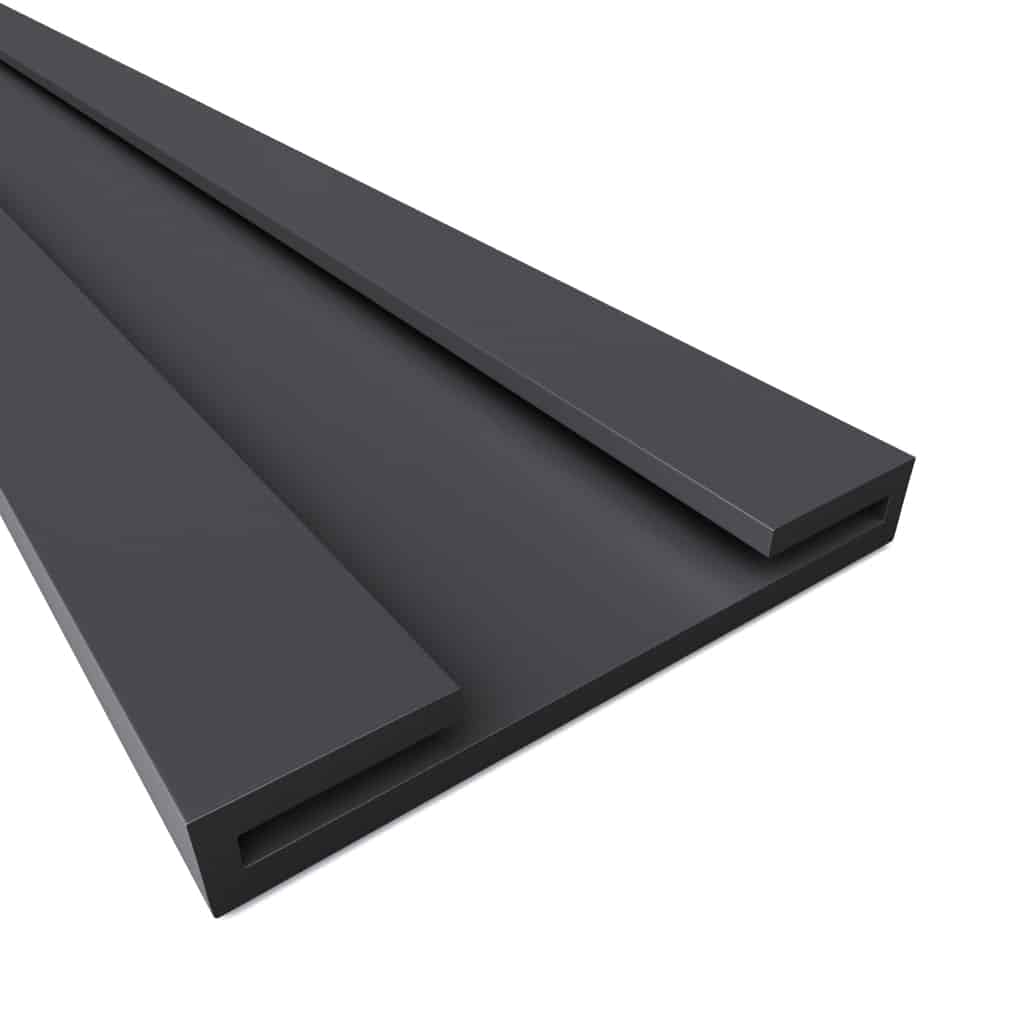

ES08-525-N70 is a solid neoprene profile that has a hardness of 70 durometer (Shore A). It is black in color and rectangular in shape with two ends that resemble the letter U. The total length of this industrial rubber product is 57 mm and it has two end sections that are both 8 mm tall. The ends resemble the letter U and are designed to accommodate a substrate.

Technical Drawing & Specification

MATERIAL: Neoprene
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: RMA-E2
SCALE: Not to scale
COLOR: Black
DURO: 70 ±5

Bending Radius & Additional Information

ES08-525-N70 is a solid rubber profile made of neoprene, an elastomer that combines physical toughness with resistance to petroleum-based products. It has a medium-density of 70 durometer (Shore A) and is black in color. ES08-525-N70 has a 3 mm gap to accommodate a substrate. The total length of this industrial rubber product is 57 mm.
