Edge Trim-ES28-128-P60 - Elasto Proxy

ES28-128-P60

Request for a Quote & Information

Product Overview & Description

ES28-128-P60 by Elasto Proxy on Sketchfab

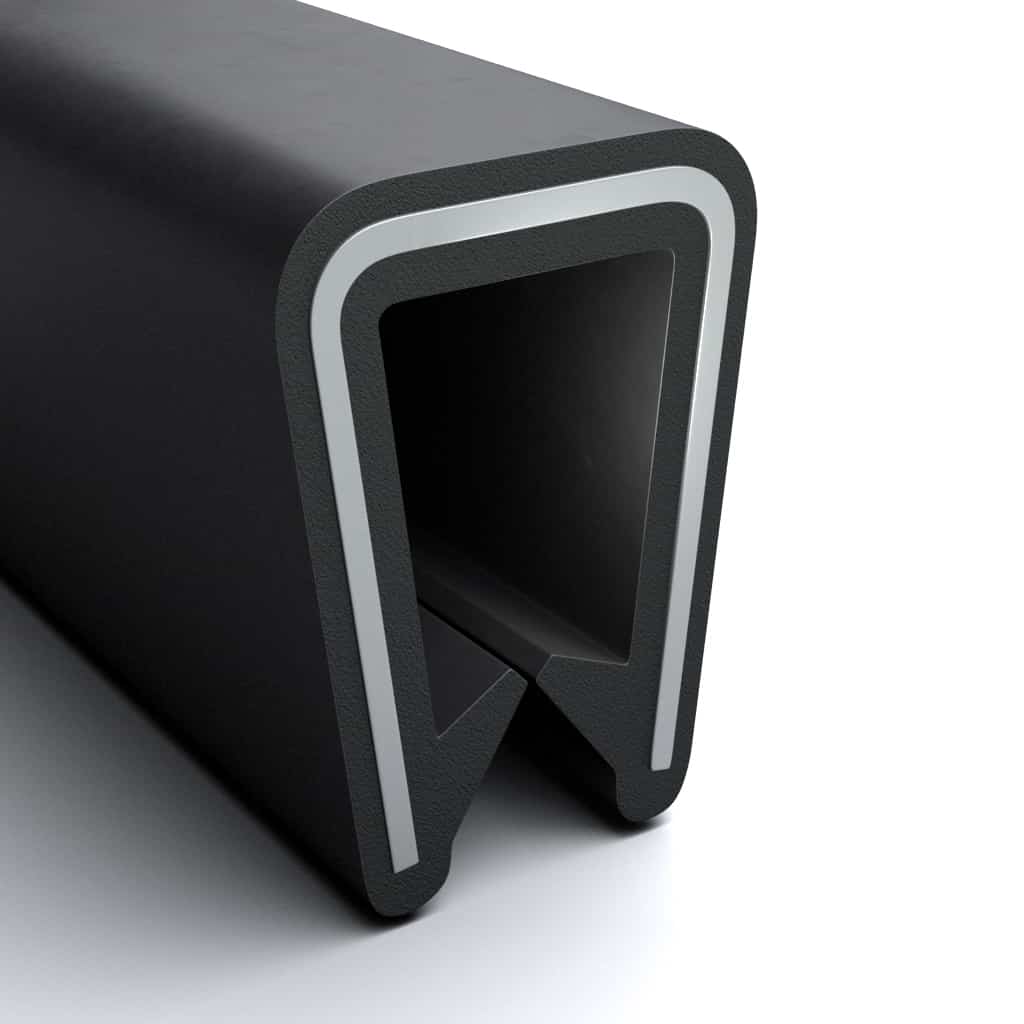

ES28-128-P60 is a 60-durometer edge trim that is made of vinyl and black in color. This industrial rubber product is 15 mm tall and shaped like an inverted U but has a flat top that measures 10 mm across. The distance between the edge trim legs is 4 mm. ES28-128-P60 is designed to press over a flange and has integral tongues for added gripping.

Technical Drawing & Specification

MATERIAL: Vinyl
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: RMA-E2
SCALE: Not to scale
COLOR: Black
DURO: 60 ±5

Bending Radius & Additional Information

ES28-128-P60 is a rubber edge trim that is metal-reinforced for added impact assistance. The density, or hardness, of the vinyl rubber is 60 durometer Shore A. Vinyl is a strong, durable elastomer that provides moisture and abrasion resistance. This industrial rubber product is 15 mm tall and 10 mm across at its widest point. The distance between the legs is 4 mm.
