Dual Durometer-EC12-443-PMT

EC12-443-PMT

Request for a Quote & Information

Product Overview & Description

EC12-443-PMT REV0 by Elasto Proxy on Sketchfab

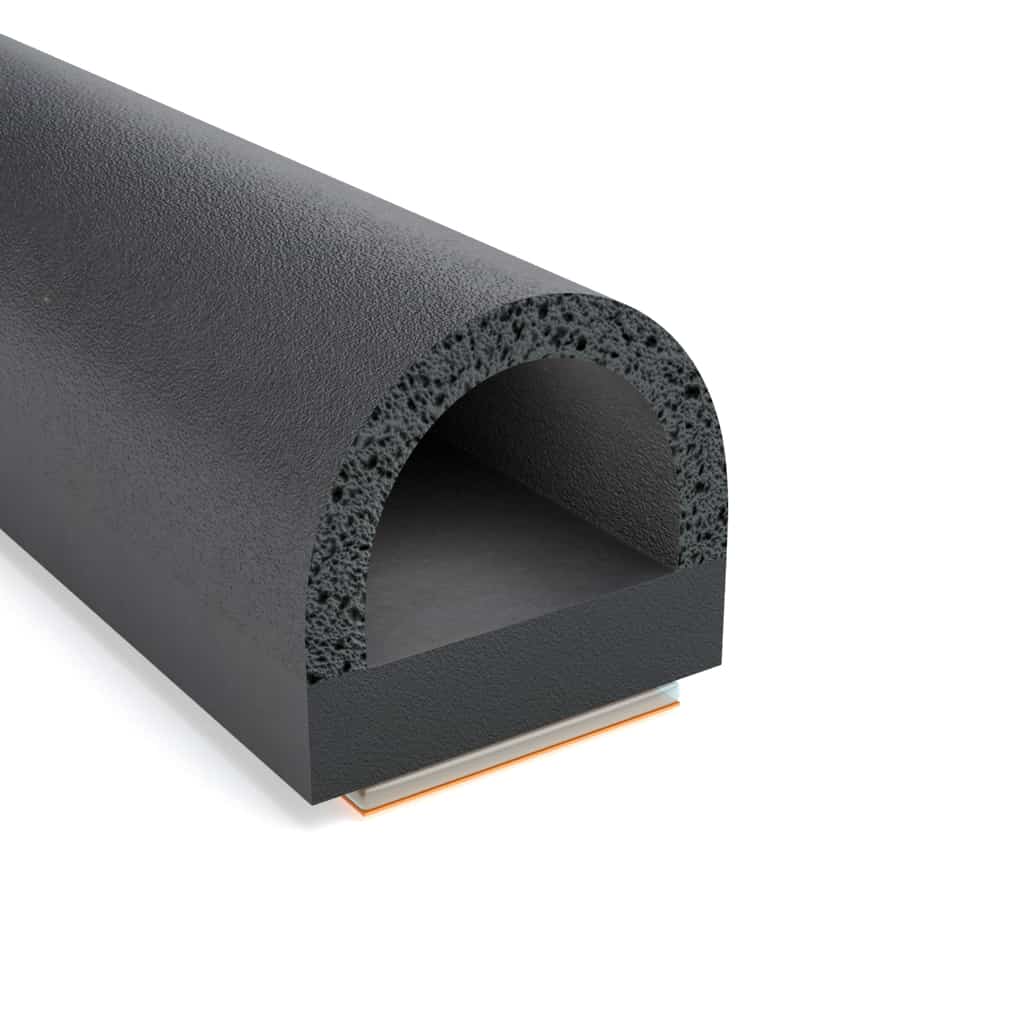

EC12-443-PMT is a co-extruded, dual durometer EPDM profile that is fabricated into rubber gaskets. It has a halfmoon-shaped bulb made of EPDM sponge rubber that is designed to support compression. The bottom section is rectangular in shape, made of EPDM solid rubber, and designed to attach to a substrate. The total height of this industrial rubber product is 5.5 mm.

Technical Drawing & Specification

MATERIAL: Plastic
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: RMA-E2
SCALE: Not to scale
COLOR: Black
DURO: Dual

Bending Radius & Additional Information

EC12-443-PMT is a dual durometer rubber product with a base made of solid EPDM rubber and a bulb made of EPDM sponge rubber. The width of the base is 1.5 mm. The distance from the top of the base to the top of the bulb is 5.5 mm. The base measures 6 mm across and the thickness of the bulb section is 0.8 mm. The tolerance class is RMA-E2.
