Dual Durometer-EC04-597-EMT1

EC04-597-EMT1

Request for a Quote & Information

Product Overview & Description

EC04-597-EMT1_REV0_003_SKETCHFAB by Elasto Proxy on Sketchfab

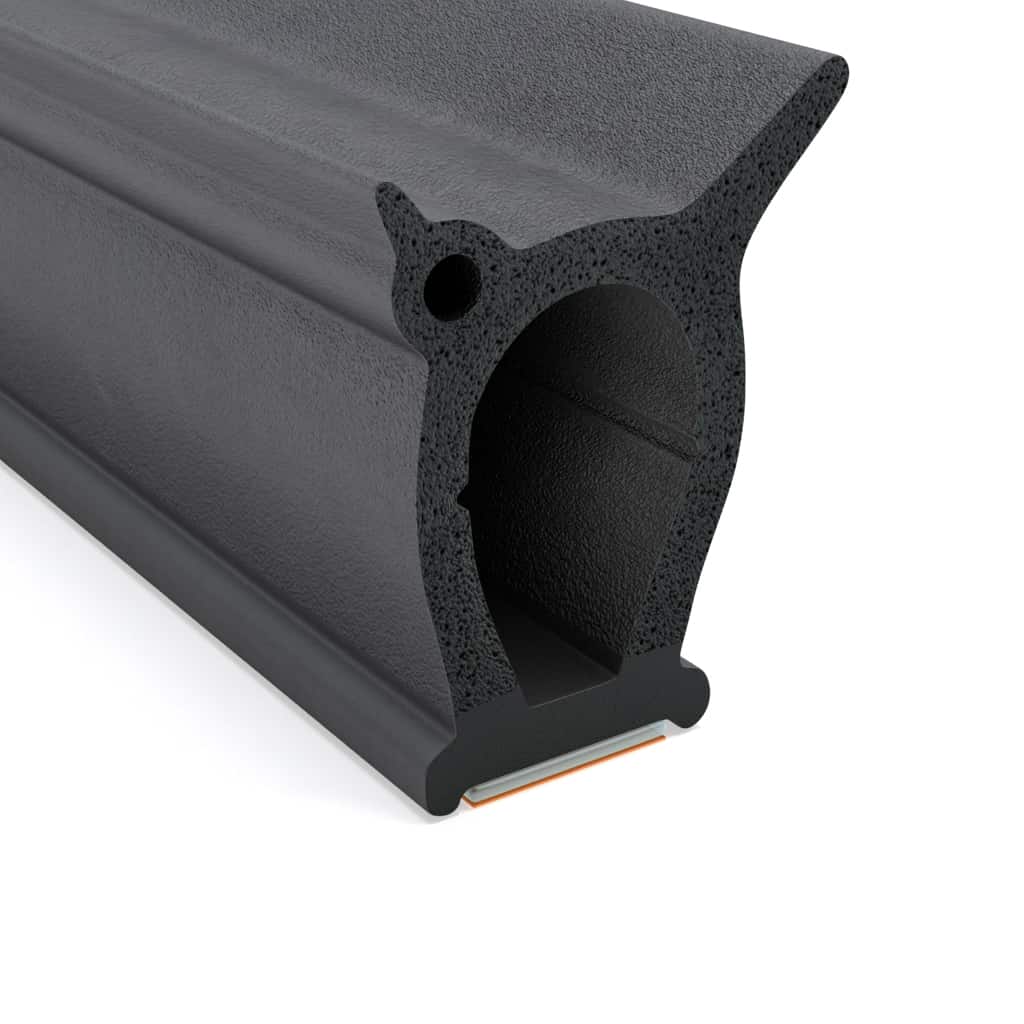

EC04-597-EMT1 is a co-extruded, dual durometer EPDM profile that is fabricated into rubber gaskets. It has a top bulb with two protruding features and a solid EPDM rubber base. The bulb is designed to support compression and the base is designed to support attachment. The distance from the bottom of the base to the highest point on the bulb is 27.5 mm.

Technical Drawing & Specification

MATERIAL: EPDM Rubber
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: As shown
SCALE: Not to scale
COLOR: Black
DURO: Dual

Bending Radius & Additional Information

EC04-597-EMT1 is a dual durometer EPDM profile that is co-extruded so that it has sections of different hardness. The top section is an oblong bulb made of EPDM sponge rubber. Two features that extend from the bulb’s surface increases the total height of EC04-597-EMT1 to 27.5 mm. The bottom section is made of solid EPDM rubber and is designed for attachment to a substrate.
