Dual Durometer-EC04-190-EMT1

EC04-190-EMT1

Request for a Quote & Information

Product Overview & Description

EC04-190-EMT1_REV0_003_SKETCHFAB by Elasto Proxy on Sketchfab

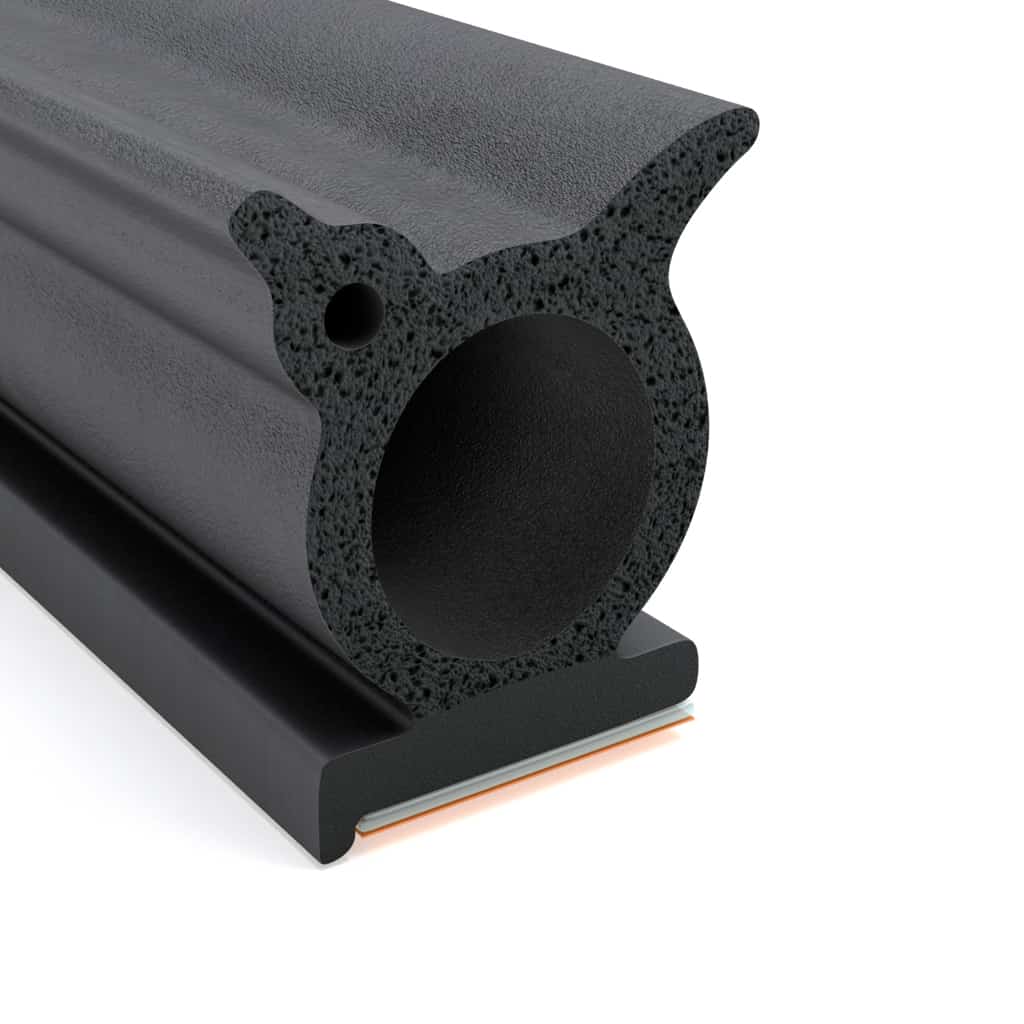

EC04-190-EMT1 is a dual durometer EPDM rubber product that is co-extruded so that it has two sections of different hardness. The top section is a rounded bulb made of EPDM sponge rubber. It has two protruding features. The bottom section of EC04-90-190-EMT is made of solid EPDM rubber and is designed for attachment. This dual durometer rubber product from Elasto Proxy is 21 mm tall.

Technical Drawing & Specification

MATERIAL: EPDM Rubber
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: RMA-BEC2
SCALE: Not to scale
COLOR: Black
DURO: Dual

Bending Radius & Additional Information

EC04-190-EMT1 is a dual durometer rubber product with a solid EPDM base and a sponge EPDM bulb. This top bulb has two protruding features that extend beyond the bulb so that the distance between them is 19 mm. The base is 14.5 mm across. The distance from the bottom of the base to the highest point on the bulb is 21 mm. EC04-190-EMT has an RMA-BEC2 tolerance.
