MB-290-C80

Request for a Quote & Information

Product Overview & Description

VM2-FF1530-R50_REV0 by Elasto Proxy on Sketchfab

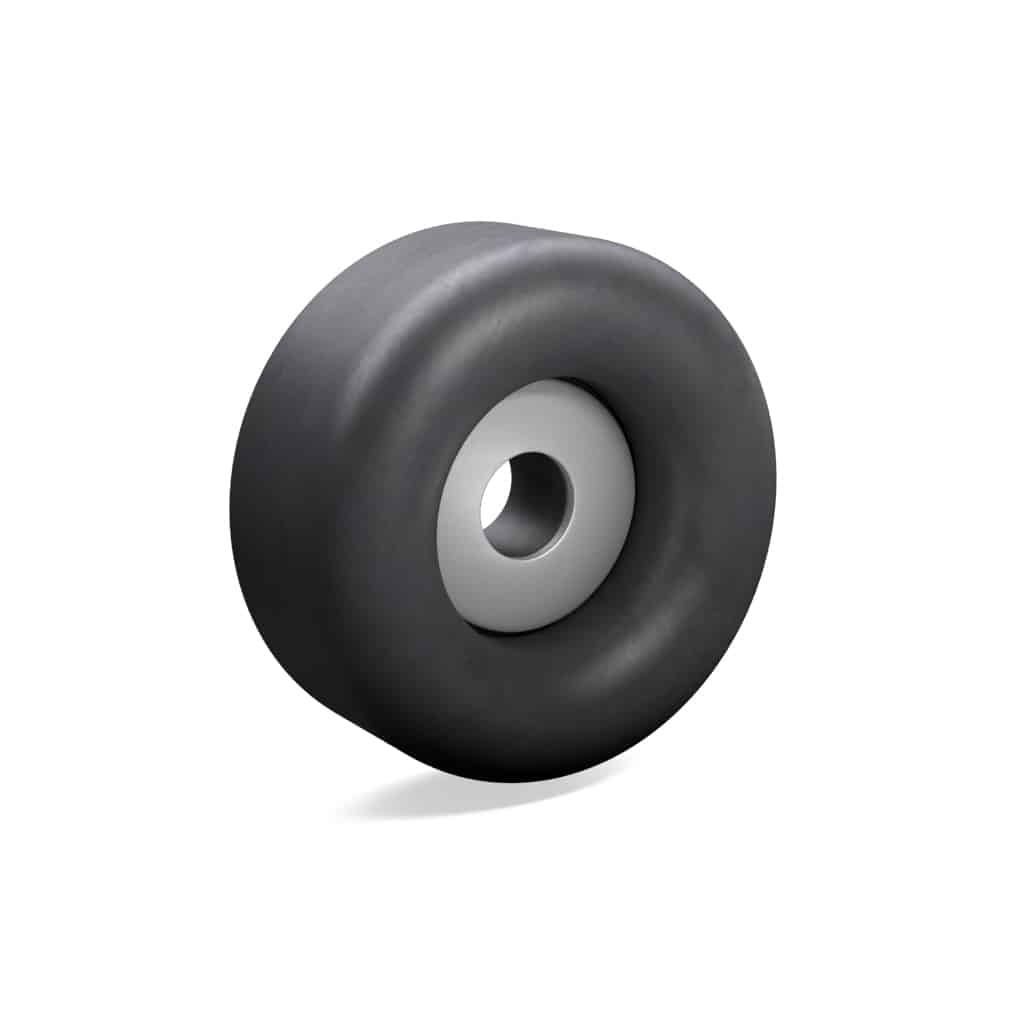

MB-290-C80 is a rubber bumper that is shaped like a wheel or a donut, depending on the point of view. Like a wheel or caster , this industrial rubber product has a recessed area that supports attachment. Most of the bumper is made of rubber, but the interior section is made of metal instead. The elastomer is styrene-butadiene rubber (SBR), which resists impact and abrasion.

Technical Drawing & Specification

MATERIAL: SBR
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: RMA-A2
SCALE: Not to scale
COLOR: Black
DURO: 80 ±5

Bending Radius & Additional Information

MB-290-C80 is a wheel-shaped rubber bumper that resembles a donut instead when placed on its side. The middle of the wheel or donut is recessed and contains a 10 mm wide shaft for mounting or attachment. The taller areas are 25 mm high and have rounded ends. MB-290-C80 consists of SBR rubber, which resists impact and abrasion.
