MB-240-C80

Request for a Quote & Information

Product Overview & Description

MB-240-C80 REV2 by Elasto Proxy on Sketchfab

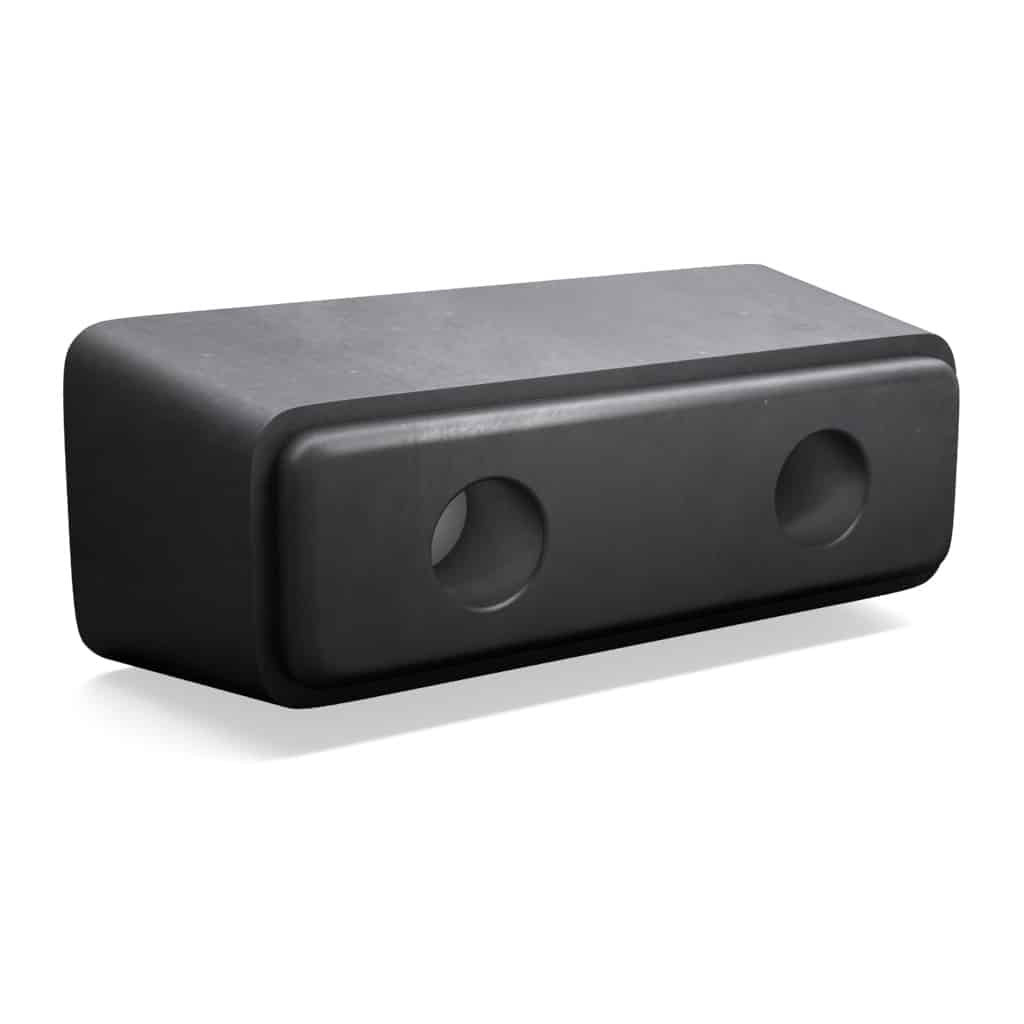

MB-240-C80 is a rubber bumper that is basically rectangular in shape, but with a raised surface and tapered sides. The top of the bumper contains two holes, each with an integral washer, for mounting. Each hole is 13.5 mm in diameter. The bottom of this industrial rubber product is slightly longer than the top and measures 195 mm. From the side, the top is 63 mm wide and the bottom is 75.4 mm wide.

Technical Drawing & Specification

MATERIAL: SBR
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: RMA-A2
SCALE: Not to scale
COLOR: Black
DURO: 80 ±5

Bending Radius & Additional Information

MB-240-C80 is an industrial bumper made of styrene-butadiene rubber (SBR), a synthetic elastomer that provides impact and abrasion resistance. This bumper is roughly rectangular in shape, but with rounded corners and tapered sides. The top of the bumper has two holes for mounting. Each hole contains a metal washer that is slightly sunk to accomodate a fastener head.
