EC28-511-EM by Elasto Proxy on Sketchfab

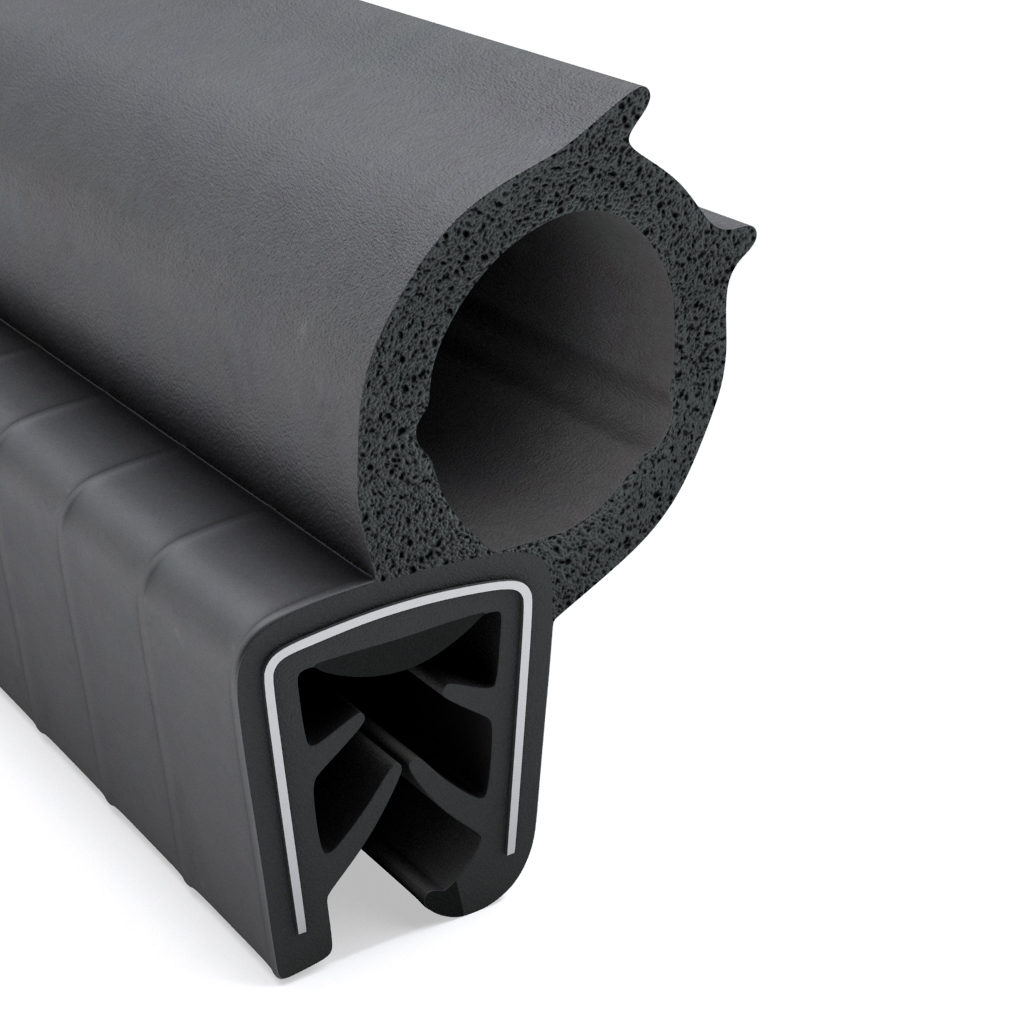

EC28-511-EM is an EPDM trim seal with a top bulb that extends to the right and is oblong. This egg-shaped bulb has two lips, one of which comes to a sharper point than the other. The width of the sponge rubber bulb is 17.5 mm, and the thickness of its walls is variable. The trim section is made of solid EPDM rubber and has four tongues for added gripping. There are tongues above each of the seal’s legs.
MATERIAL: EPDM
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: As shown
SCALE: Not to scale
COLOR: Black
DURO: Dual
EC28-511-EM is a black EPDM rubber trim seal with two different durometers. The trim or retainer section is made of solid EPDM rubber and contains a metal wire or clip for added reinforcement and impact resistance. The distance from the highest point inside the trim to the tip of the bulb’s topmost seal is 22.0 mm. The distance from the bottom of the leg to the highest point inside the trim is 15.0 mm. Use this industrial rubber product to seal rounded corners.
