EC28-280-EM

Request for a Quote & Information

Product Overview & Description

EC28-280-EM by Elasto Proxy on Sketchfab

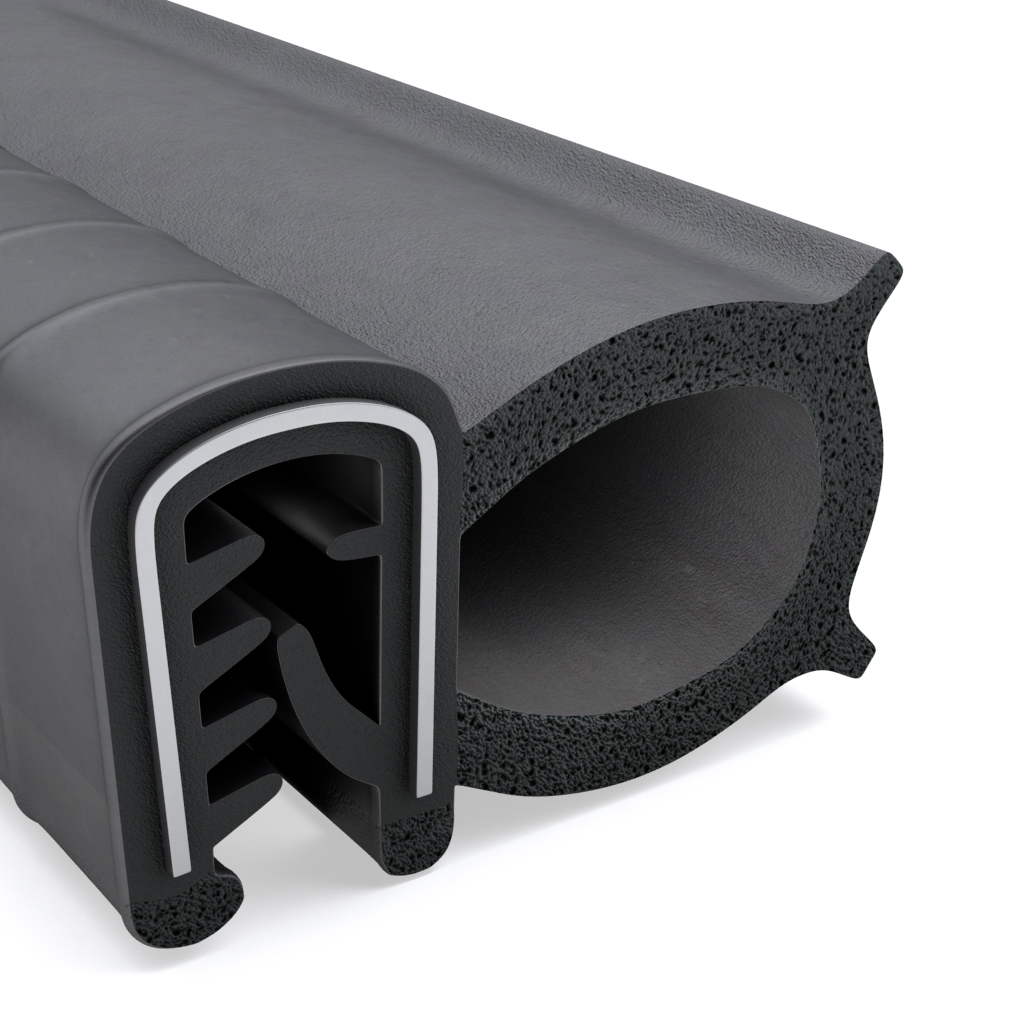

EC28-280-EM is a dual durometer bulb trim with a solid rubber retainer section at the bottom of the seal and a sponge rubber bulb on the top. The trim is 16.00 mm tall and the distance between its legs is 5.5 mm. The side bulb is teardrop shaped rather than rounded and has two lips. The distance between these protrusions is 15.0 mm. The distance from the middle of the trim to the edge of the upper list is 22.0 mm.

Technical Drawing & Specification

MATERIAL: EPDM
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: RMA-E2
SCALE: Not to scale
COLOR: Black
DURO: Dual

Bending Radius & Additional Information

EC28-280-EM is an EPDM co-extrusion with two different durometers, or hardness, on the Shore A scale. The solid rubber trim is located on the left and is 16.0 mm tall. The teardrop shaped bulb is 1.6 mm thick and has two lips that protrude from the side. The distance between these features is 15.0 mm, and the distance from the upper lip to the middle of trim section is 22.0 mm.
