Bulb Trim-EC28-230-EM
EC28-230-EM
Request for a Quote & Information
Product Overview & Description

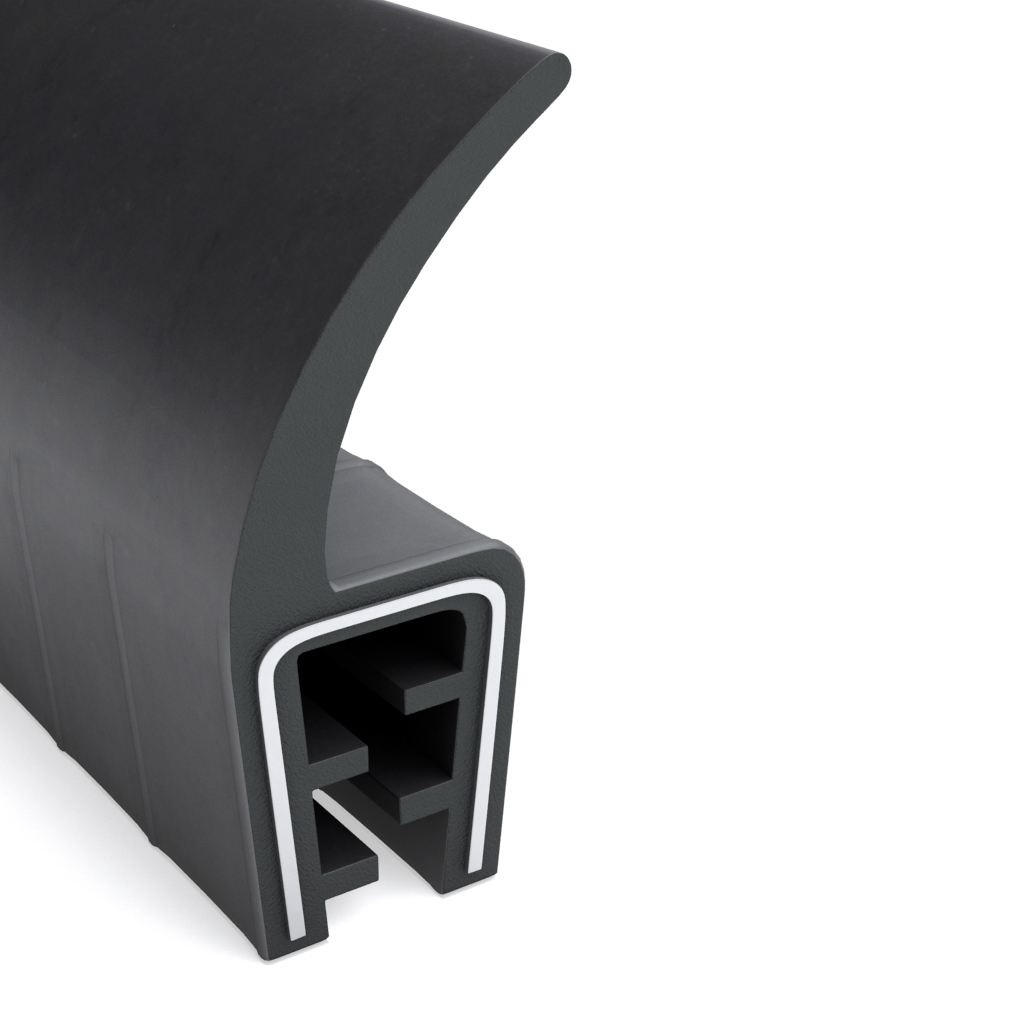

EC28-230-EM is an EPDM bulb trim with a dual durometer construction. The trim section is made of solid rubber and the bulb section is made of sponge rubber. The bulb is round in shape, has upper and lower lips, and is located to the right of the trim. The bulb provides the sealing action and the trim is designed for mounting. This trim seal from Elasto Proxy is designed for doors and hatches with radiused corners.
Technical Drawing & Specification
MATERIAL: EPDM Solid
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: RMA-E3
SCALE: Not to scale
COLOR: Black
DURO: 70 ±5
Bending Radius & Additional Information
EC28-230-EM is a dual durometer seal that is co-extruded with solid rubber and sponge rubber sections. The sponge rubber bulb compresses when the door or hatch is closed. When this compressive force is removed, the bulb returns to its original size. This bulb trim seal has measurements for trim height, bulb height, and the distance between the middle of the trim to the edge of the lip on the bulb.
