Bulb Trim-EC28-213-EM
EC28-213-EM
Request for a Quote & Information
Product Overview & Description

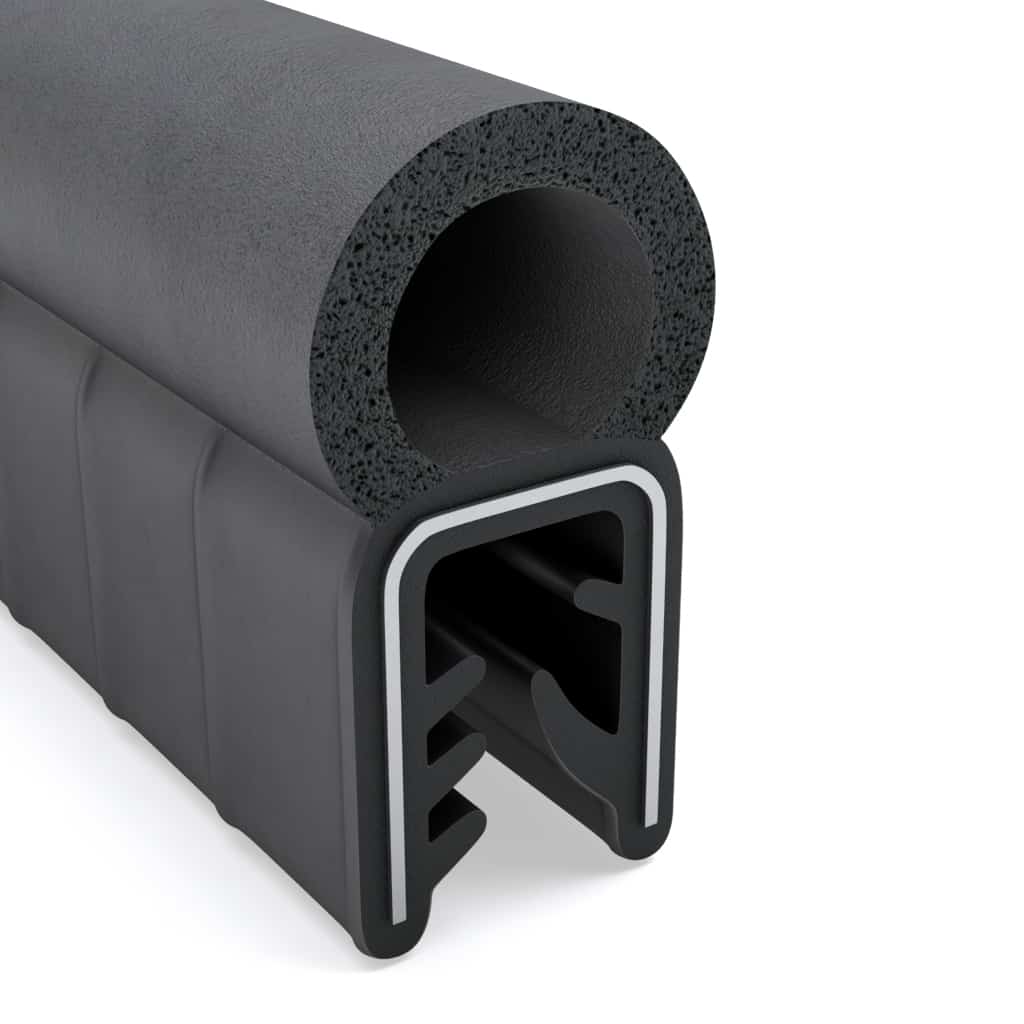

EC28-213-EM is an EPDM rubber co-extrusion with a solid rubber trim and a sponge rubber bulb. This trim seal has a top bulb that fills the gap and compresses to form a seal. The bulb then returns to its original size when the compressive force is removed. The trim section is designed to mount over a flange. It has internal tongues for gripping and a metal retainer for added impact resistance.
Technical Drawing & Specification
MATERIAL: EPDM
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: RMA-E2
SCALE: Not to scale
COLOR: Black
DURO: Dual
Bending Radius & Additional Information
EC28-213-EM is an EPDM bulb trim that is co-extruded with bulb and retainer sections. The bulb is 13mm across and measures 12mm from the top of the bulb to the underside of the top section of the re retainer. The distance from the bottom of the trim to the top of the bulb is 25 mm and is measured from the bottom of the legs, which have a rounded shape.
