Bulb Trim-EC28-112-EM - Elasto Proxy

EC28-112-EM

Request for a Quote & Information

Product Overview & Description

EC28-112-EM by Elasto Proxy on Sketchfab

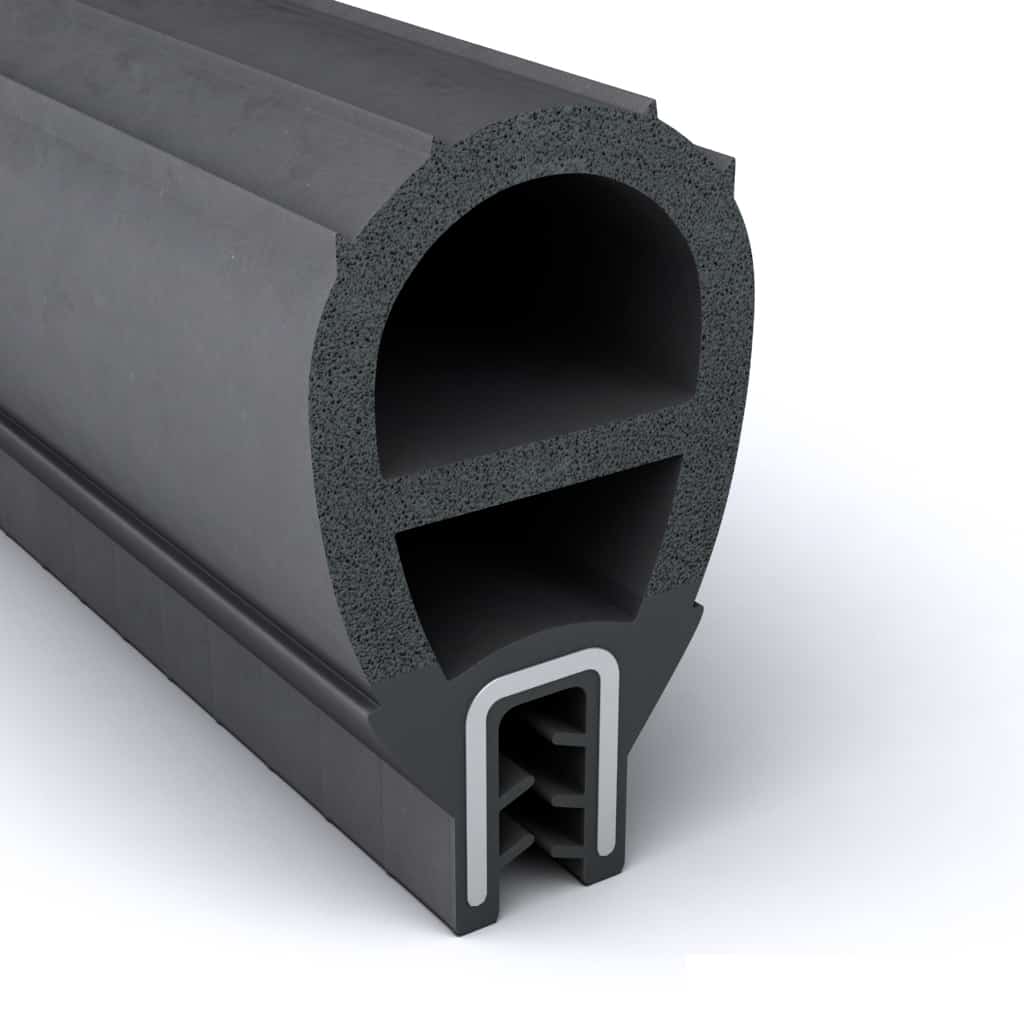

EC28-112-EM is an EPDM bulb trim that provides sealing and insulation for rounded corners on doors, hatches, and enclosures. The trim seal from Elasto Proxy has two sections. The bulb section compresses to form a seal. The trim section, which is also known as the retainer, presses into place over a flange. The EPDM rubber that is used provides good environmental resistance outdoors

Technical Drawing & Specification

MATERIAL: EPDM
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: As shown
SCALE: Not to scale
COLOR: Black
DURO: Dual

Bending Radius & Additional Information

EC28-112-EM is a dual-durometer bulb trim made of EPDM rubber. The bulb is on top of the trim and measures 25 mm across. The bulb itself is 31 mm high. The trim section contains integral tongues for gripping and a metal clip for impact resistance. The distance from the base of the trim to the top of the bulb is 47 mm. The legs of the trim are 3 mm wide.
