Anti-Vibration Mount-VM2-MM2525-R50
VM2-MM2525-R50
Request for a Quote & Information
Product Overview & Description

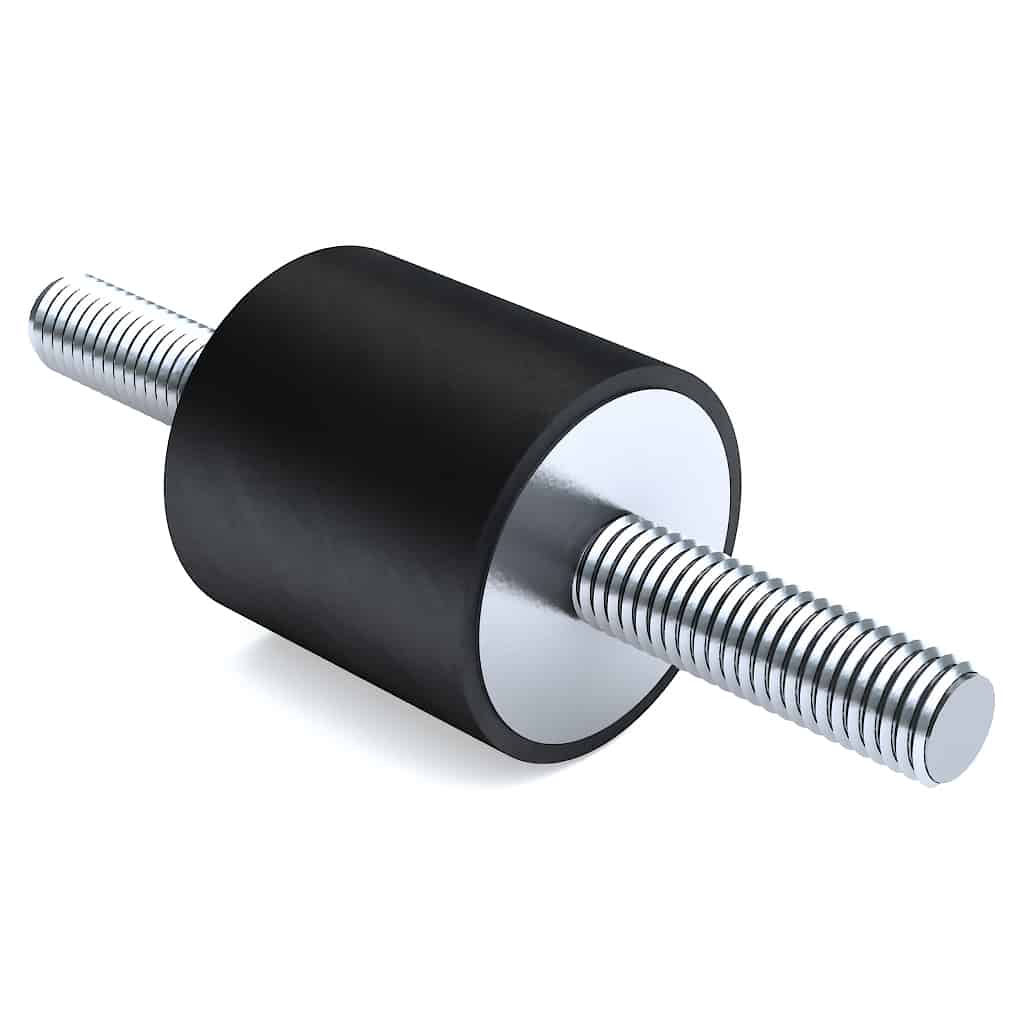

VM2-MM2525-R50 is an anti-vibration mount with a medium-sized cylinder and a long metal fastener. The body of the cylinder is 25.0 mm tall. From either end of the cylinder, the M6x1.0 metric fastener extends 12.0 mm ± 1 mm. This vibration mount is designed for vehicles, machinery or equipment and consists of abrasion-resistant natural rubber bonded to corrosion-resistant zinc-plated steel.
Technical Drawing & Specification
MATERIAL: Natural Rubber/Steel
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: RMA-A2
SCALE: Not to scale
COLOR: Black
DURO: 50 ±5
Bending Radius & Additional Information
VM2-MM2525-R50 is a cylindrical vibration mount with a rubber-to-metal bonded assembly that is 25.0 mm tall. It contains a threaded through-hole for an M6x1.0 metric fastener that extends 12.0 mm ± 1 mm from either end of the cylinder. The load/kg is 40°: 17, 60° 33. The maximum compression is 2 mm. VM2-MM2525-R50 uses 50-durometer (Shore) natural rubber.
