Solid Profile-ES32-175-E70
ES32-175-E70
Request for a Quote & Information
Product Overview & Description

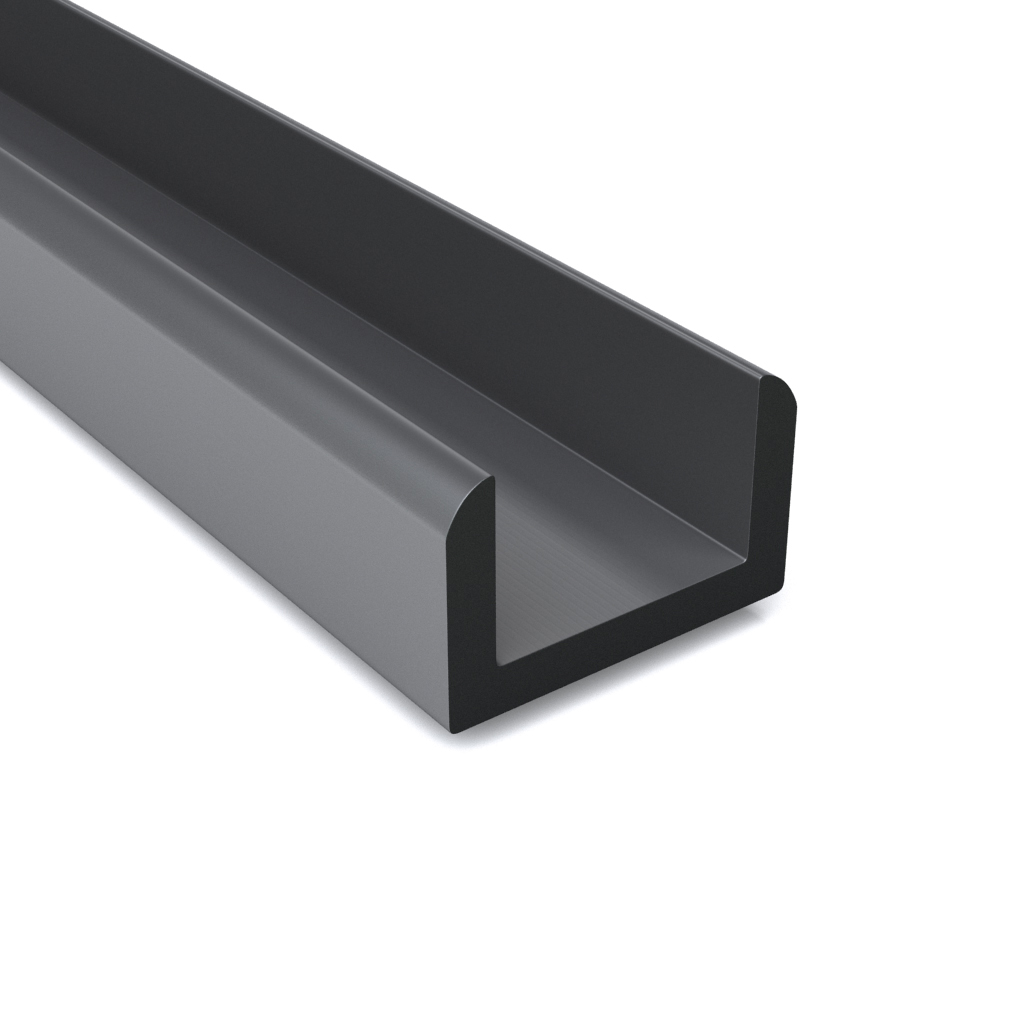

ES32-175-E70 is a solid rubber profile that is made of EPDM and black in color. The durometer, or hardness, is 70 Shore A. This solid profile has a U-shape but with a wide base of 25.4 mm. The profile’s height is 15.9 mm, and the distance between the top of the base and the top of each leg is 12.7 mm. ES32-175-E70 presses into place.
Technical Drawing & Specification
MATERIAL: EPDM Rubber
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: RMA-E2
SCALE: Not to scale
COLOR: Black
DURO: 70 ±5
Bending Radius & Additional Information
ES32-175-E70 is made of solid EPDM rubber and designed to press into place. It is black in color and has hardness, or durometer, of 70 Shore A. This profile has a U-shape but with a wide base and legs that are curved rather than squared at their tops. ES32-175-E70 is 25.4 mm wide and 15.9 mm tall. The gap is 19.1 mm.
