MB-230-C80

Request for a Quote & Information

Product Overview & Description

MB-230-C80 REV2 by Elasto Proxy on Sketchfab

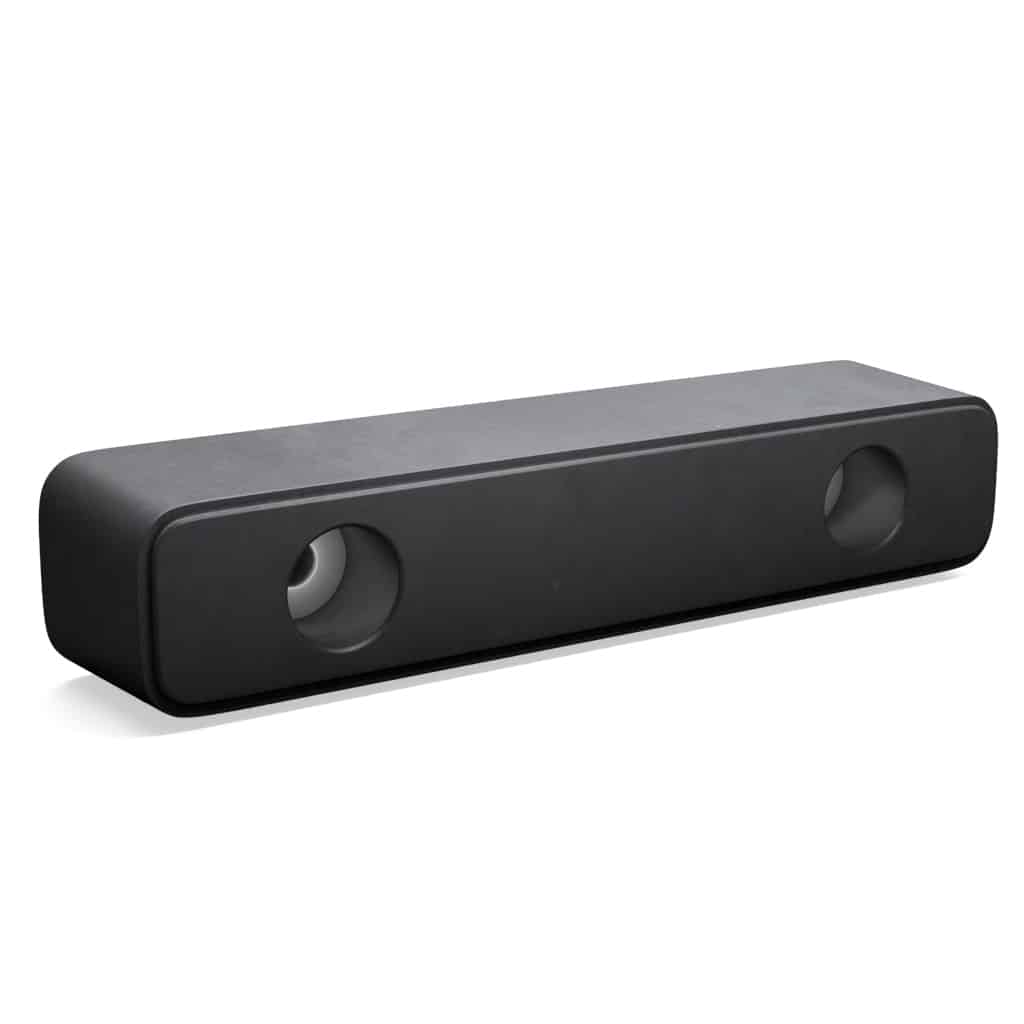

MB-230-C80 is a bumper that has a rectangular top and bottom but with rounded corners. The top of the bumper contains two mounting holes for fasteners. Metal washers that are slightly sunk are included. The sides of this industrial rubber product are slightly tapered. The elastomer is styrene-butadiene rubber (SBR), which provides both impact strength and abrasion resistance.

Technical Drawing & Specification

MATERIAL: SBR
WIDTH: As shown
HEIGHT: As shown
TOLERANCE: RMA-A2
SCALE: Not to scale
COLOR: Black
DURO: 80 ±5

Bending Radius & Additional Information

MB-230-C80 is an SBR bumper that is rectangular in shape but with rounded corners and tapered sides. The top of the bumper is 207.5 mm long and include two holes for washers and fasteners. The bottom of the bumper is slightly larger than the top and measures 215.9 mm. The sides of this industrial rubber product are 50.8 mm. SBR is durable and resists impact and abrasion.
